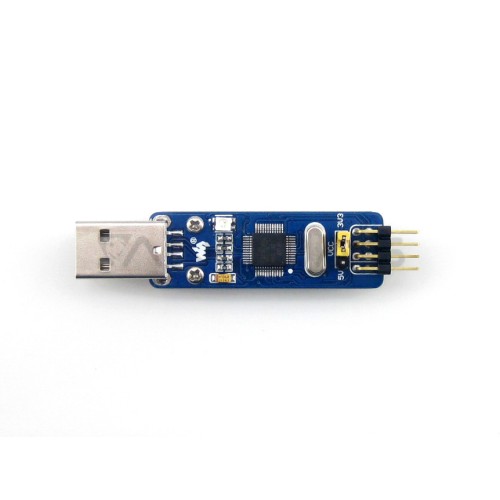

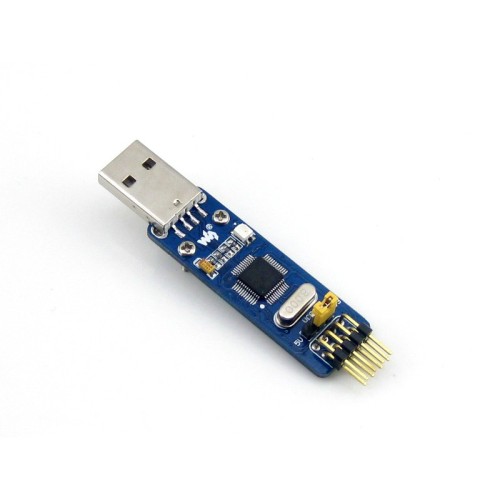

Programmer / debugger STM8 / STM32 - compatible with ST-LINK / V2 mini

The device is used as the programmer and debugger modules for STM8 and STM32. Works with voltages of 3.3 V and 5 V, can be selected by jumper. Has a built-in 500 mA fuse to prevent damage to the programmable modules.

Specification

• Programmer / debugger modules STM8 and STM32
• Output voltage 3.3 V and 5 V selectable with jumper
• Connecting to a computer via USB
• The programmer allows you to access Flash ROM, EEPROM, FAILURE rate, etc.
• The debugger supports functions step by step breakpointy, viewing variables and registers, etc.
• The possibility of firmware updates
• Supported software:
  • ST-LINK Utility v2.0+
  • STVD Version 4.2.1+
  • STVP Version 3.2.3+
  • IAR EWARM Revision v6.20+
  • IAR EWSTM8 Revision v1.30+
  • KEIL RVMDK Revision v4.21+
  • ATOLLIC
  • TASKS

Connection with PC

To connect with computer through USB interface, must install drivers, which are available for Windows 7, Vista and XP. Currently, the manufacturer does not provide software for Windows 8 and 10.

Connection with STM8 / STM32

Connection with STM8 microcontrollers through the interface SWIM

Connection with STM32 microcontrollers through the interface SWD
