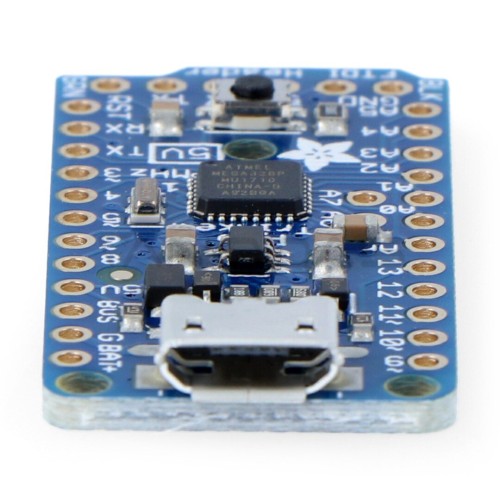

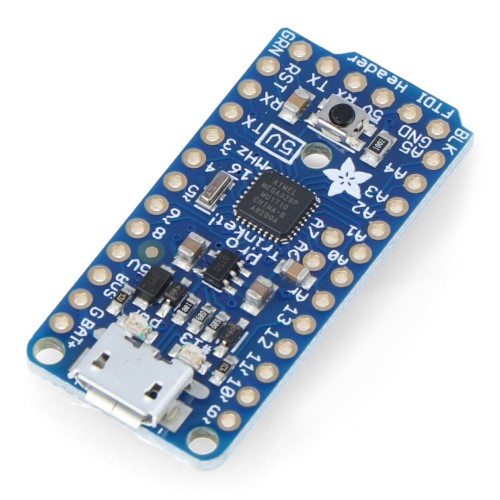

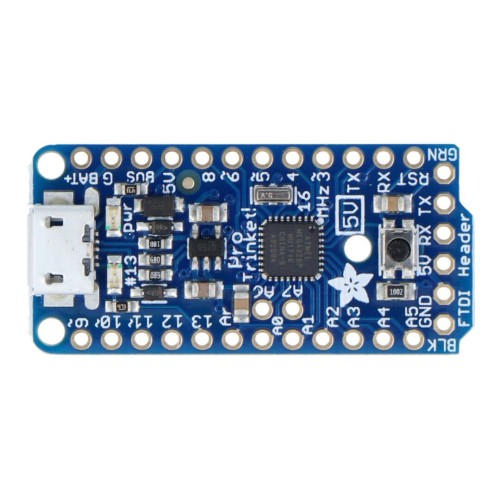

Pro Trinket, ATmega328 module, 5V 16MHz, Adafruit 2000

Module with AVR ATmega328 microcontroller is equipped with 32 KB of Flash memory, 18 digital pins, analog inputs, and 8 PWM channels. On board is a microUSB connector, thanks to which the system can be programmed via the Arduino IDE. This version works with a voltage of 5 V.

Specification:

• AVR ATmega328 microcontroller:
• Flash memory: 32 KB (4 kB of which is occupied by the bootloader)
• SRAM: 2 b
• Clock Frequency: 16 MHz
• Working voltage: 5 V
• USB bootloader with the possibility of programming using the Arduino IDE
• MicroUSB connector for programming
• 5 V installed regulator with the current delivery of up to 150 mA, allowing you to connect the supply voltage up to 16 V
• Power supply from the USB port or external power source with the automatic switching system
• On the board are two LEDs: green for power, and red for the user, connected to pin 13
• The RESET button
• Digital outputs: 18
• Analog inputs: 8 (additional A6 and A7 are located in the central part of the board)
• PWM channels: 8
• Four mounting holes with a diameter of 2.1 mm
• Dimensions: 38 x 18 x 4 mm
• Weight: 2.6 g
