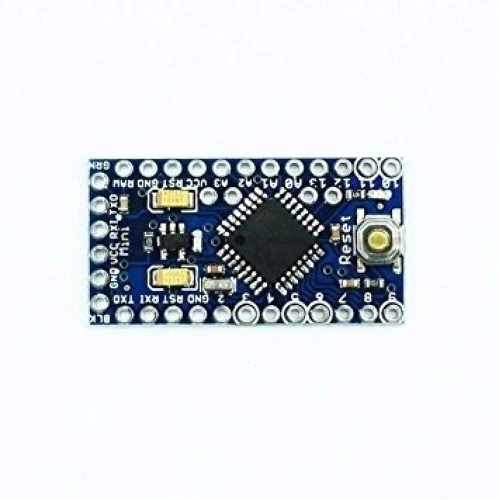

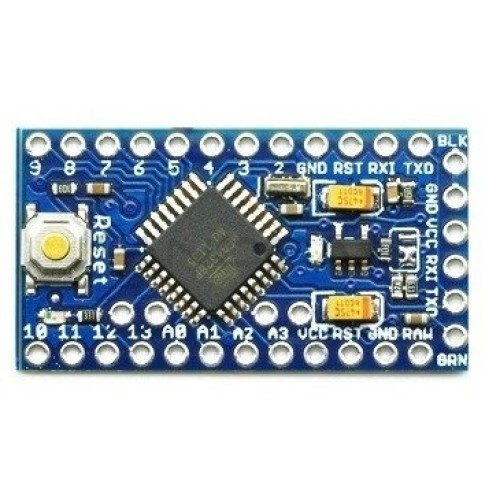

Pro Mini 328P - 5V / 16MHz - ATmega328P with bootloader - Bascom AVR - Arduino compatible

Universal module with ATmega328P microcontroller. Can be used in many microprocessor projects. The system is compatible with the Arduino PRO MINI 5V 16MHz project. The microcontroller has a pre-loaded bootloader, so all you need for programming is a UART programmer, for example one for PLN 5.

• Long distance temperature controller

• Pro Mini, like UNO, is based on a popular microcontroller
• It has an Atmega328P microcontroller.

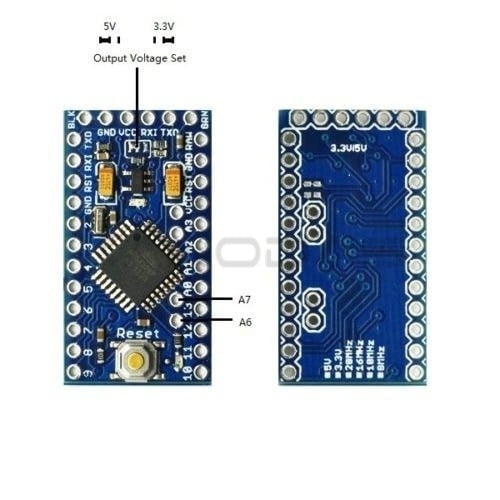

• The board contains an ATmega328 system, equipped with 14 digital inputs/outputs, 6 of which support the PWM signal (e.g. for controlling servos), as well as 8 analog inputs (for voltage measurement), but they can also function as additional digital pins (a total of 22 I/O digital ones).
• Works with voltages of 5V.
• It is clocked with a 16 MHz clock signal.
• Switch for manual reset
• This version does not have soldered connectors - thanks to this, the board can maintain its small size.

• VCC supply voltage: 5V
• RAW supply voltage: 4 to 12V
• Microcontroller: ATmega328P - 16 MHz
• Ports - I/O pins: 14
• Number of analog inputs: 8
• Number of PWM outputs: 6
• Serial interfaces: UART, SPI, I2C
• External and internal interrupts
• Protection against excessive current flow
• The module is made of 0.8 mm thick laminate
• Weight less than 2 g.
• Pin spacing 2.54mm (can be mounted on breadboards)
• Dimensions: 33 x 18 mm
• 32kB flash memory
• 1kB EEPROM
• 1kB SRAM
• 2 8-bit timers/counters
• 1 timer/counter 16 bit

• Power supply
  • If the supply voltage is higher than 5V, it should be connected to the RAW pin, which is connected to the stabilizer (then the voltage is 7-10V).
  • VCC is connected directly to the microcontroller pins, connecting a voltage higher than 5V may permanently damage the system.
• Inputs/outputs
  • Arduino Pro has 14 digital input/output (I/O) pins.
  • Each pin allows a maximum current consumption of 40mA, which allows direct connection of LEDs with resistors and control of other integrated circuits.
  • In addition to standard I/O, some pins also have special functions.
• programming
  • Creating and uploading software is possible in a free environment provided by the manufacturer.
  • Arduino Pro does not have a chip controlling the USB interface. Therefore, a UARTUSB adapter is required for programming.
  • For programming, you can use the PL2303 Programmer or the AVR ISP Programmer.

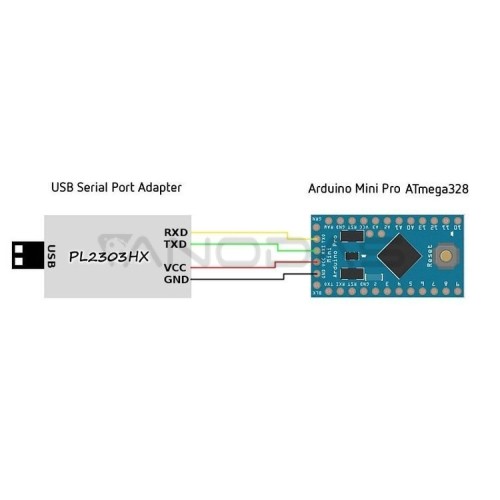

  • How to connect

• Arduino Pro Mini home page

• Using the Arduino Pro Mini 3.3V

• Arduino software - Arduino.cc

• Pro Mini 328P - Arduino compatible - 1 pc.
