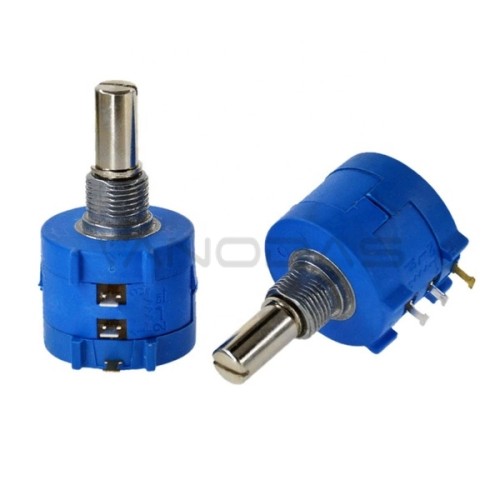

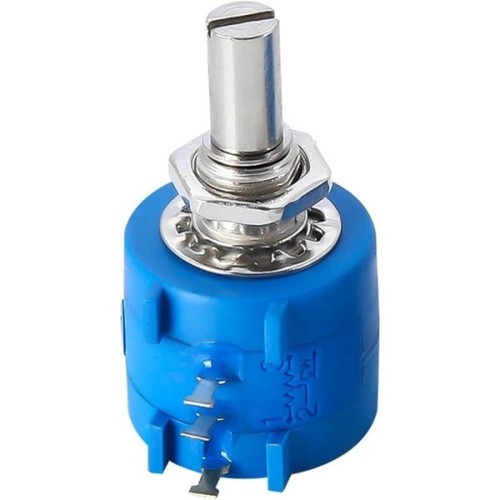

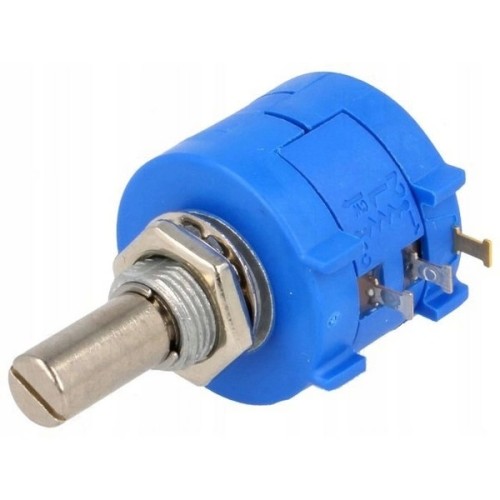

Precision potentiometer - multi-turn - 1K Ohm - 2W - 3590S-2-102L

Product Code: ABC-12530
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-05-12
5.80€
Ex Tax: 4.79€

Qty

Precision potentiometer - 1K Ohm - 2W - 3590S-2-102L

The precision potentiometer model 3590S-2-102L is an advanced electronic component offering a resistance of 1K Ohm at a power of 2W.

Its multi-turn design allows for very accurate resistance adjustment, which is crucial in precise electronic applications.

It is ideally suited for use in professional measuring devices, control systems, and other complex electronic systems.

Reliability and high-quality workmanship make this potentiometer appreciated by engineers and electronics hobbyists.

Technical data:

  • Potentiometer type: axial
  • Potentiometer type: multi-turn
  • Resistance: 1kΩ
  • Power: 2W
  • Tolerance: ±5%
  • Axle diameter: 6.35mm
  • Characteristics: linear
  • Body dimensions: Ø22 x 18mm
  • Track material: wire
  • Axle length: 13mm
  • Potentiometer properties: precise
  • Linearity tolerance: ±0.25%
  • Operating temperature: -55...125°C
  • Axle surface: smooth
  • Axle material: metal
  • Mechanical durability: 250,000 cycles
  • Mounting thread: M9x0.75
