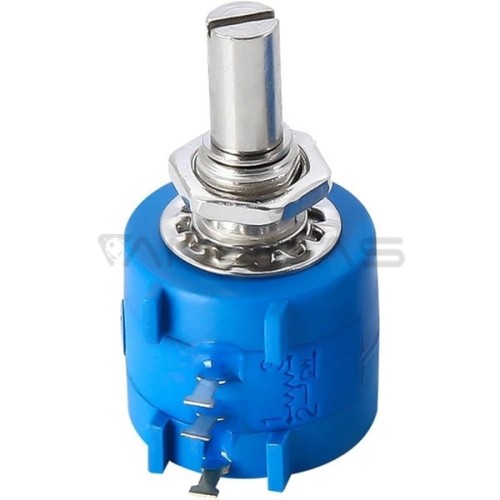

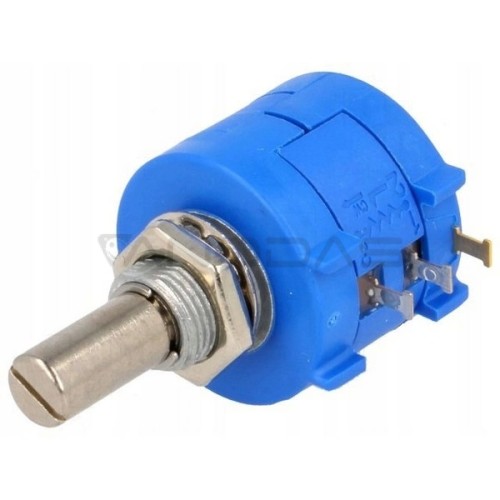

Precision potentiometer - multi-turn - 10k Ohm - 2W - 3590S-2-103L

Product Code: ABC-11456
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-05-13
6.00€
Ex Tax: 4.96€

Qty

Precision potentiometer - 10k Ohm - 2W

The 3590S-2-103L precision potentiometer is a high-quality electronic component that offers a resistance of 10k Ohm at a power of 2W.

Its multi-turn design allows precise adjustment of the resistance value, which is crucial in many technical applications.

It is ideal for use in measuring devices, precise control systems and other advanced electronic systems.

Thanks to its reliability and accuracy, this potentiometer is often chosen by professionals and electronics enthusiasts.

Technical data:

  • Potentiometer type: axial
  • Potentiometer type: multi-turn
  • Resistance: 10kΩ
  • Power: 2W
  • Tolerance: ±5%
  • Axle diameter: 6.35mm
  • Characteristics: linear
  • Body dimensions: Ø22 x 18mm
  • Track material: wire
  • Number of electric revolutions: 10
  • Axle length: 13mm
  • Potentiometer properties: precise
  • Linearity tolerance: ±0.25%
  • Operating temperature: -55...125°C
  • Axle surface: smooth
  • Insulation resistance min.: 1000MΩ
  • Axle material: metal
  • Mechanical durability: 250,000 cycles
  • Mounting thread: M9x0.75
