Power supply Mean Well GS60A18-P1J 18V/3.33A - DC plug 5.5/2.1mm

Brand: MEAN WELL
Product Code: AN-05154
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
36.10€
Ex Tax: 29.83€

Qty

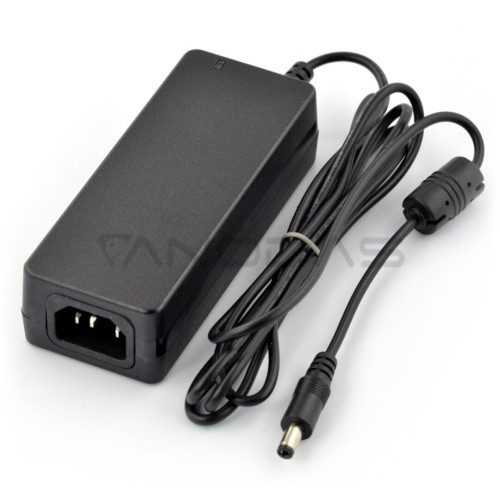

Mean Well's stabilized power supply unit with supply voltages from 90 V to 260 V. The output voltage is18 V DC and the output current is 3.33 A. The power supply is 60 W. The device has overload, surge, short circuit and overheats protection.

Specification:
  • Manufacturer: Mean Well
  • Power supply voltage: AC 90 - 260 V / 50 - 60 Hz

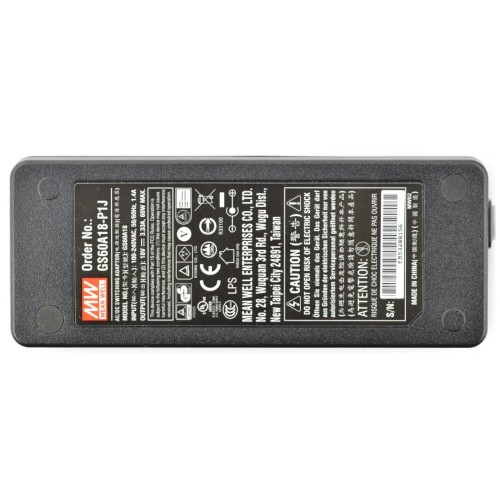

  • Manufacturer's markings: GS60A18-P1J
  • Output voltage: DC 18 V
  • Output current: 3,33 A
  • Power: 60 W
  • Protections: overload, overvoltage, short-circuit, overheating
  • Dimensions of the housing: 125 x 50 x 31.5 mm
  • Output plug diameter: 5.5 / 2.1 mm
  • Plug type: simple
  • Plug polarity: plus in the middle / minus outwards
  • Input connector type: IEC C14
