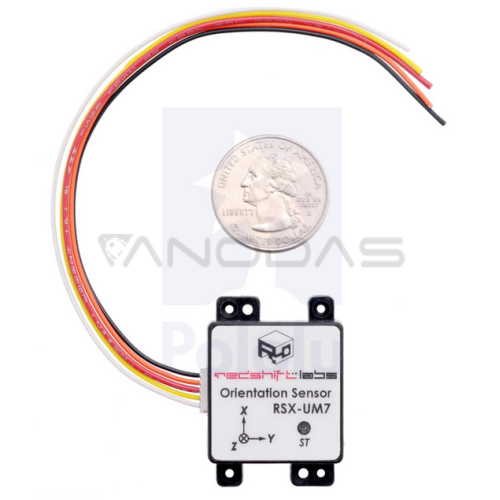

Polulu Redshift Labs UM7 Orientation Sensor TTL / SPI 4 V - 5.5 V EKF

The UM7 orientation sensor from Redshift Labs is an Attitude and Heading Reference System (AHRS) that contains a three-axis accelerometer, rate gyro, and magnetometer. It combines this data using an Extended Kalman Filter to produce attitude and heading estimates.

Features:

• Sensors and processing
• Excellent gyro bias stability over temperature
• Adjustable low-pass filter and EKF settings provide customizable performance for various applications
• States and sensor data synchronized to GPS position and velocity using optional external GPS module
• Allows for alignment calibration and third-order bias and scale factor temperature compensation for accelerometers, gyros, and magnetometer
• Magnetometer soft and hard-iron calibration can be performed through the serial interface software

Communication:

• Output data:
  • Attitude and heading (Euler angles)
  • Attitude quaternion
  • magnetometer, accelerometer, gyro data
  • GPS altitude, position, velocity (with optional external GPS)
• 3.3 V TTL serial interface (UART) with baud rates up to 921,600 bps can stream data or provide updates on request
  • Note: the main UART pins, TX, and RX, are 5V-tolerant and can be directly connected to 5 V systems that are guaranteed to read 3.3 V as high
• Transmits data using human-readable NMEA strings (up to 100 Hz broadcast), binary packets for higher efficiency (up to 255 Hz broadcast), or a combination of both
• Flexible communication architecture allows UM7 to transmit any combination of data at individually adjustable rates

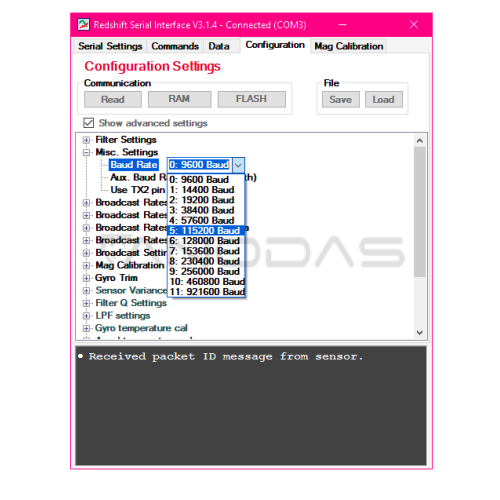

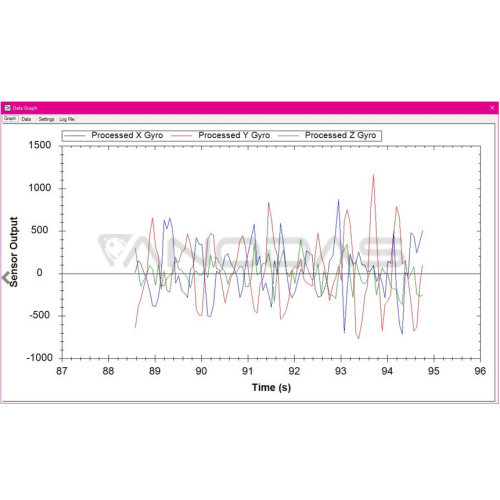

• Connects to the Redshift Serial Interface software to allow for real-time plotting of sensor data, logging, device configuration, and magnetometer calibration

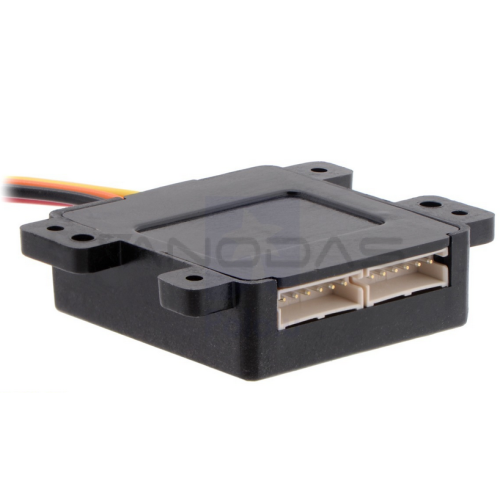

• SPI interface available through expansion connector

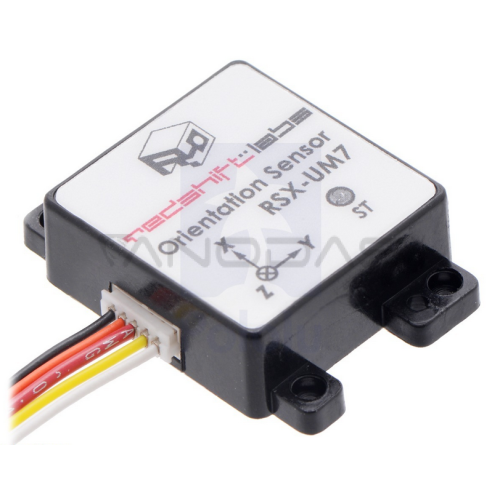

Specifications:

• UM7 (with enclosure):
  • Dimensions: 1.09″ × 1.12″ × 0.37″ (28 mm × 28 × 9 mm) without mounting tabs
  • Weight: 0.26 oz (7.5 g) without cable
• Operating voltage: 4 V to 5.5 V
• I/O logic level: 3.3 V (with 5V-tolerant main UART pins, TX and RX)

Attitude and heading

• EKF estimation rate: 500 Hz
• ±1° typical static pitch/roll accuracy
• ±3° typical dynamic pitch/roll accuracy
• ±3° typical static yaw accuracy
• ±5° typical dynamic yaw accuracy
• 0.5° angle repeatability
• <0.01° angular resolution
