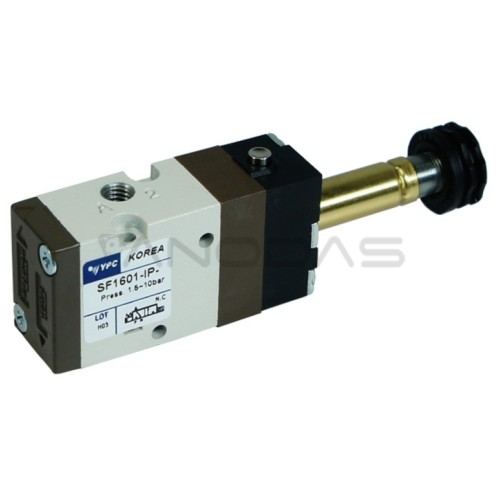

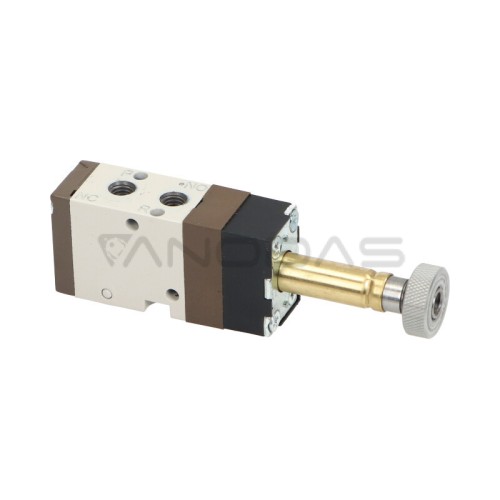

Pneumatic solenoid valve 3/2 monostable M5 SF1601

Brand: YPC
Product Code: MX-P-ZS-SF1601-IP
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-20
65.30€
Ex Tax: 53.97€

Qty

Technical data:
  • Function: 3/2 normally closed
  • Return way: air + spring
  • Connection: M5
  • Width: 15 mm
  • Flow: 200 l/min (5 bar)
  • Medium: compressed air and inert gases
  • Pressure: 1.5 ~ 10 bar
  • Temperature range: 5 ~ 60°C
  • Response time: 25 ms (5 bar)
  • Operating frequency: 5 c/sec
  • Lubrication: not required (use ISO VG32#)
  • Manual override: button
Construction:
  • Valve housing: aluminum
  • Coil body: aluminum
  • Seals: NBR rubber
  • Spring: stainless steel
  • Cover: die-cast zinc
  • Remote control parts: glass fiber reinforced nylon
  • Armature: stainless steel
  • Armature seal: elastomer

Width [mm]: 15mm
Flow: 200 l/min (5 bar)
Connection: M5
Function: 3/2 normally closed
Return way: air + spring
Pressure: 1.5 ~ 10 bar
Freq. work: 5 c/sec
Response time: 25 ms (5 bar)
