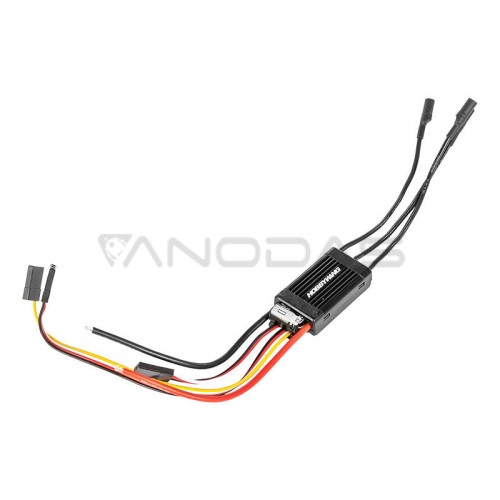

PLATINUM-25A-6S-V4 speed controller

Brand: Hobbywing
Product Code: HW30204200
Availability: Temporarily Out Of Stock
44.10€
Ex Tax: 36.45€
PLATINUM-25A-6S-V4

The PLATINUM-25A-6S-V4 speed controller is an advanced device designed for alternating current (AC) powered aircraft and helicopter models. The regulator offers a constant current of 25A and a maximum peak current of 40A, ensuring stable and efficient power supply under various conditions. Compatible with NiXX (10-18 cells) and LiXX (3-6 cells) batteries, it allows a wide range of power configurations. Equipped with a BEC with adjustable 6-7.4V voltage and 3A current, it provides reliable power for on-board electronics. Compact dimensions (47 mm long, 22 mm wide, 10 mm high) and low weight (27 g) facilitate installation in models with limited space. The PLATINUM-25A-6S-V4 offers unidirectional control, brake function, and programmability, allowing the user to tailor operating parameters to specific needs. The lack of sensor inputs further simplifies the design and operation of the device.

ManufacturerHobbywing
ModelHW30204200
ApplicationAeroplanes, Helicopters
TypeAC
Constant current25A
Max peak current40A
NiXX cells10-18
LiXX cells3-6
BEC voltage6-7.4V
BEC current3A
Length47 mm
Width22 mm
Height10 mm
Weight27 g
Controlunidirectional
BrakeYes
Inputs for sensorsNo
ProgrammableTak
