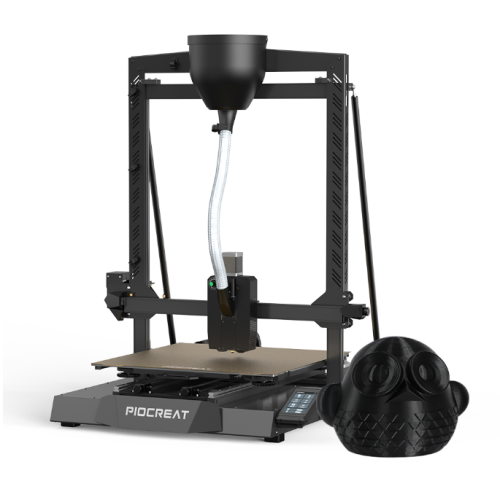

PioCreat G5 Pro Granule 3D printer

The G5 Pro industrial pellet 3D printer is independently developed by Piocreat. The low-cost, high-efficiency 3D printing technology meets the needs of users for fast, high-precision and multi-material 3D printing. The G5 Pro features a completely new print head assembly, magnetic attraction platform, and supports both auto-leveling and assisted leveling modes.

Features:

• Larger printing area: 500x500x500mm
• Spring steel platform
• Fast heating
• Screw nozzle design

FGF technology

The Piocreat G5 Pro is an industrial-grade 3D printer based on FGF (Fused Pellet Manufacturing) technology, a type of material extrusion AM process similar to FDM printing. FGF 3D printers work with thermoplastic in the form of pellets or granules, which are loaded into a hopper, fed into a screw extrusion system, where it is heated, and the molten, homogeneous mass of plastic is extruded through a nozzle to create a model. Since the plastic filaments used in FDM 3D printing are made from pellets, using pellets directly to build parts, FGF printing is incredibly cost-effective for many industrial applications.

New Generation Nozzle Printing Components

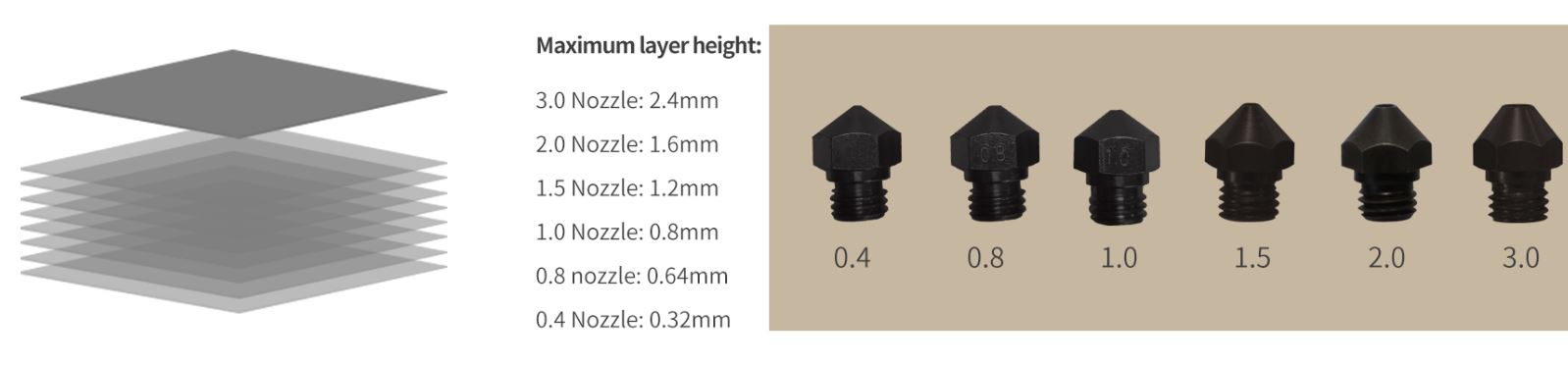

Ensure that the ejection is stable, smooth and without blocking. The self-developed new generation screw extrusion nozzle design, the maximum nozzle temperature is 450 °C, the extrusion force is strong, and the nozzle diameter of 0.4-3.0 mm is flexibly selected for fast and stable printing.

Ability to print various materials

Compatible with various pellet materials. Suitable for various materials, reusable, flexible and interchangeable.

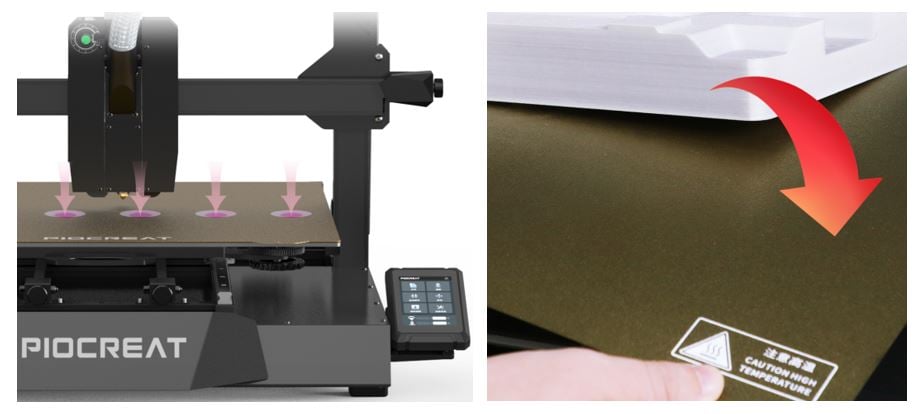

Spring steel magnetic attraction platform

Adopt spring steel magnetic attraction platform, which heats up quickly and reduces printing waiting time. G5 Pro heats up to 60°C in only 1 minute and 57 seconds; Ordinary 3D printer reaches the same temperature in 5 minutes and 38 seconds.

Easy to take the mold

The model is removed by bending the platform, durable and not easily deformed, the bottom is flat and easy to clean.

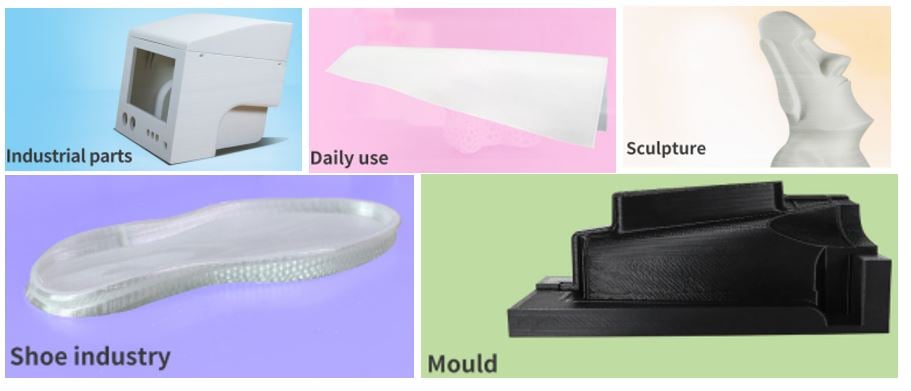

Why choose FGF granular 3D printer?

• Mold making: save time and reduce costs
• Sculpture art: mainly used for artistic creation, digital sculpture, landscape model, etc.
• Education and research: 3D printing product teaching, material science research, etc.
• Industrial parts: applicable to structural part templates, industrial figures, industrial parts, etc.

Specifications:

• Nozzle thread / mounting: Pio M7
• Maximum nozzle temperature: 450 ºC
• Extruder type: Direct drive
• Recommended maximum printing speed: 100 mm/s (depends on material)
• Build volume: 500x500x500mm
• Maximum build plate temperature: 150 ºC
• Build plate material: flexible steel plate
• Build plate fixing: magnetic
• Build plate alignment system: automatic and auxiliary
• Building chamber during the process: open
• Filament chamber closed: Yes
• Number of extruders: 1
• Overall dimensions: 765x890x990mm
• Net weight: 36.3kg
• Ambient operating temperature: 5°C - 40°C
• Maximum power consumption: 1250 W
• AC voltage: 100V, 11.5 A230 V (50-60 Hz)
• Hepa filter: Yes
• Safe power loss: Yes
• Touch screen: Yes
• SD card: Yes
• USB port: Yes
• WLAN: No
• Layer height: 0.2 - 2mm
• Shipping box: 990x845x510mm
• Total weight: 68kg
