Pico-Clock-Green, a module with digital LED electronic clock, hat for Raspberry Pi Pico, Waveshare 19695

Brand: Waveshare
Product Code: AN-19358
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-22
34.90€
Ex Tax: 28.84€

Qty

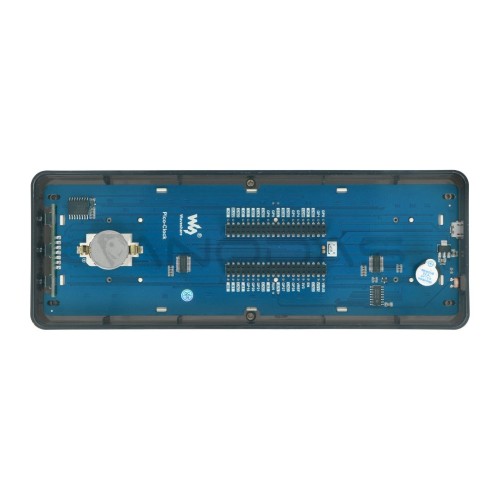

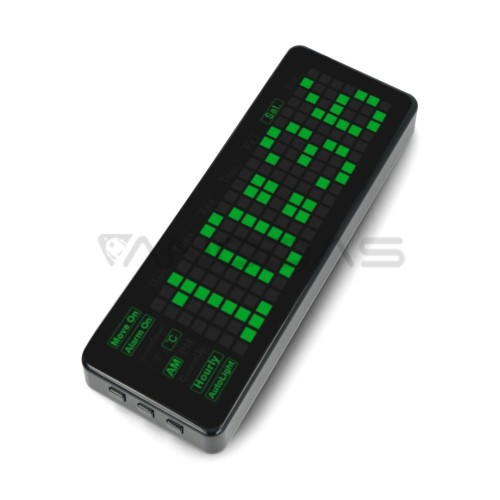

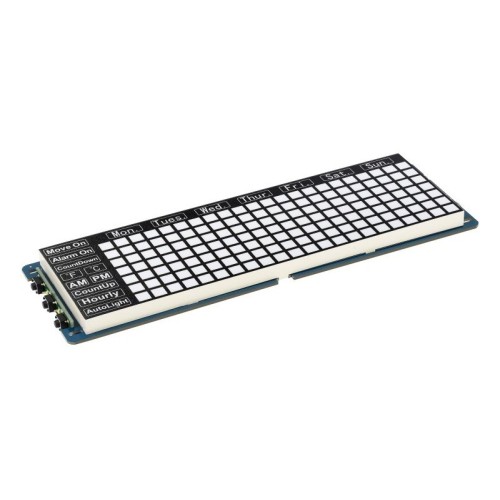

The Pico-Clock-Green is an overlay for the Raspberry Pi Pico in the form of a digital electronic clock that presents information through its built-in LEDs. It has a DS3231 RTC chip, light intensity sensor, buzzer, and function buttons. It uses the I2C bus to communicate with Pico. Displays information about the current time, date, or temperature.

Main features:
  • Built-in RTC DS3231 with an integrated battery, which maintains the clock after disconnecting the power supply and allows continuous measurement of time and temperature
  • Equipped with light intensity sensor (photosensor) responsible for automatic brightness control
  • Buzzer enabling the activation of two programmable alarms
  • Equipped with two mounting holes with a distance of 90 mm
  • Real-time clock counts seconds, minutes, hours, day of the month, month, day of the week, and year with leap year compensation valid until 2100
  • Gives the possibility to set the time format: 24-hour or 12-hour with AM / PM indicator
  • Digital temperature sensor with ± 3 °C measuring accuracy
Specification:
  • Type: overlay for Raspberry Pi Pico
  • Module: digital LED electronic clock
  • Built-in chip: SM5166P + SM16106
  • Power supply: from 3.3 V to 5 V (via USB)
  • Backup battery voltage: from 2.3 V to 5.5 V
  • Power consumption: 100 nA
  • Debug port: USB
  • Backlight type: LEDs
  • Layout: 8x24
  • Backlight color: jade green
  • Additional features:
    • scrolling display
    • alarm
    • time in selectable 12/24 hours
    • the temperature in °C/°F format
    • day of the week with automatic setting
    • timer configuration
    • manual or automatic brightness adjustment
    • 3 buttons for configuration
  • Display dimensions 190 x 60 mm
  • Overlay dimensions: 216 x 79 x 25 mm

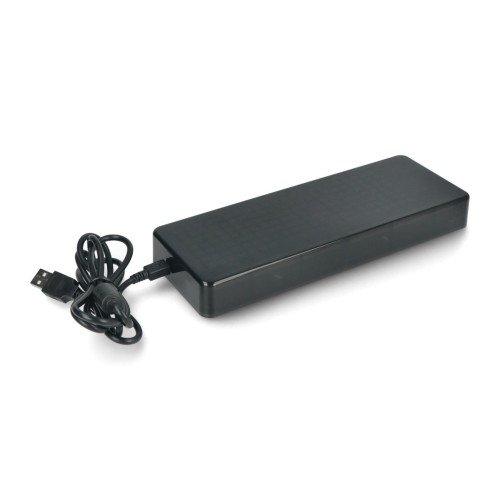

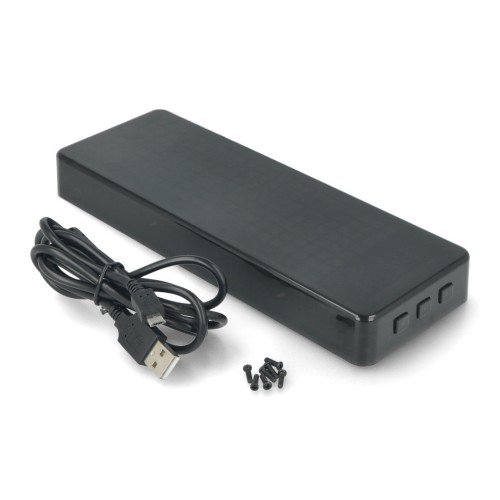

Set includes:
  • Pico-Clock-Green overlay
  • Black overlay case
  • USB A - microUSB B cable 120 cm long
  • Battery CR2032 for RTC clock
  • Mounting elements - screws - x7
