Pi Zero MAX3232 series - RS232 interface for Raspberry Pi

Brand: AB Electronics
Product Code: AN-11720
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
26.60€
Ex Tax: 21.98€

Qty

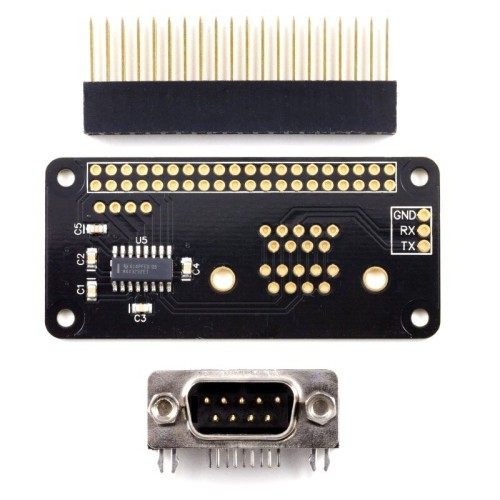

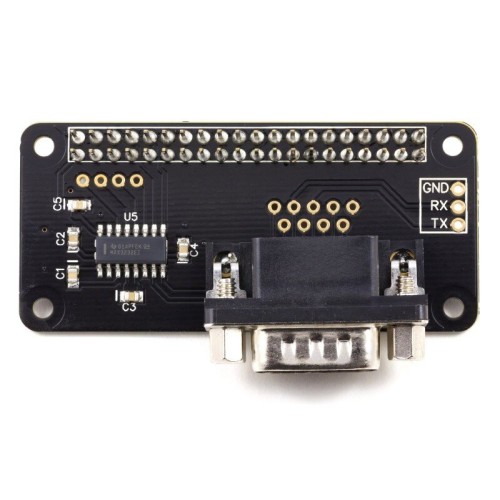

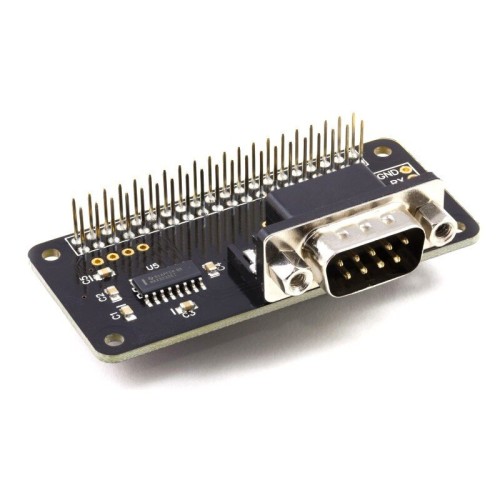

Shield for Raspberry Pi, version A+ / B+ / 2 / 3 / 3+ / Zero / Zero W with system MAX3232 which allows for communication via the RS232 interface. The module has a converter that communicates via UART, it is powered by the Raspberry Pi connectors. On the board is a DB9 connector, as well as a place to create prototype systems.

Specification:
  • Power: consumed with a Raspberry Pi
  • Driver: MAX3232E
  • Voltage of the logic of the UART port: 3.3 V
  • The maximum data transfer rate: 250 kbps
  • RS232 input voltage: -25 V to 35 V
  • Output voltage of RS232: -13,2 V to 13.2 V
  • Connectors compatible with Raspberry Pi, version A+ / B+ / 2 / 3 / 3+ / Zero / Zero W
  • Built-in DB9 connector
  • Communication: UART - RX, TX
  • Connectors for self-soldering
