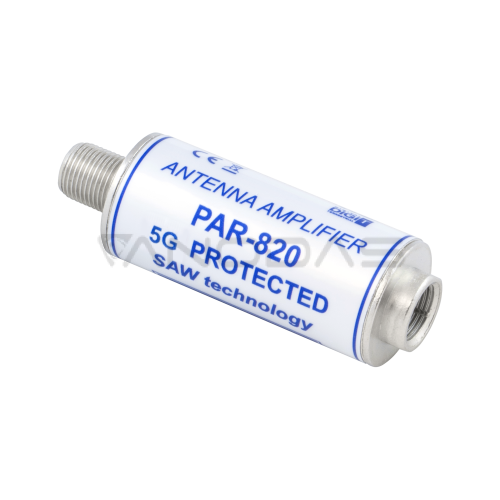

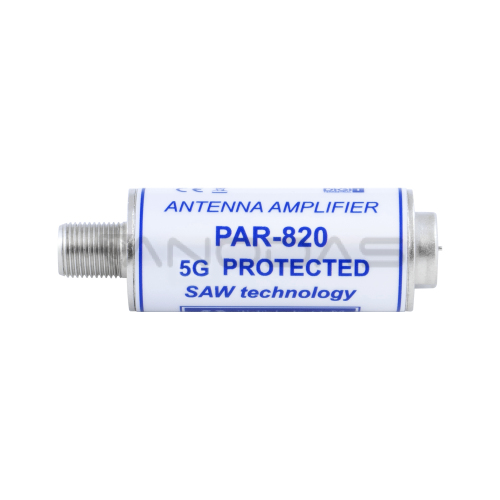

PAR-820 5G Protected Antenna Preamplifier Telkom Telmor
Brand: Telkom Telmor
Product Code: ANT0723
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-02-14
Product Code: ANT0723
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-02-14
Ex Tax: 18.18€
----------
Characteristics
----------
Installation in a convenient place of the coaxial cable or directly to the antenna or diplexer,
Low own noise
High resistance to intermodulation, low power consumption
Immunity to external electromagnetic fields (solid metal housing)
Low current consumption <40 mA
Polish production and development
----------
Technical data
----------
Operating frequency range: 47-694 MHz
Passband gain: 19 dB +/- 2 dB
Stop band: 694-862 dB
Gain in the stopband: 2 dB/700 MHz; -10dB/800MHz
Maximum output level: 104 dBuV
Noise figure: 4.0dB
Input/output impedance: 75 ohms / 75 ohms
Power supply: 5-24V DC
Current consumption: 40 mA
Input/output connector type: F
The PAR-820 5G PROTECTED TV tube preamplifier is designed to amplify weak terrestrial TV signals received by a passive terrestrial antenna. Thanks to the SAW technology used, the preamplifier eliminates 5G/LTE signals in most cases, without removing DVB-T2 signals.
Characteristics
----------
Installation in a convenient place of the coaxial cable or directly to the antenna or diplexer,
Low own noise
High resistance to intermodulation, low power consumption
Immunity to external electromagnetic fields (solid metal housing)
Low current consumption <40 mA
Polish production and development
----------
Technical data
----------
Operating frequency range: 47-694 MHz
Passband gain: 19 dB +/- 2 dB
Stop band: 694-862 dB
Gain in the stopband: 2 dB/700 MHz; -10dB/800MHz
Maximum output level: 104 dBuV
Noise figure: 4.0dB
Input/output impedance: 75 ohms / 75 ohms
Power supply: 5-24V DC
Current consumption: 40 mA
Input/output connector type: F
The PAR-820 5G PROTECTED TV tube preamplifier is designed to amplify weak terrestrial TV signals received by a passive terrestrial antenna. Thanks to the SAW technology used, the preamplifier eliminates 5G/LTE signals in most cases, without removing DVB-T2 signals.
