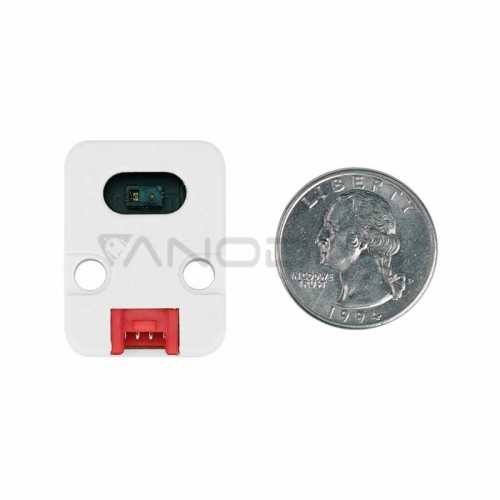

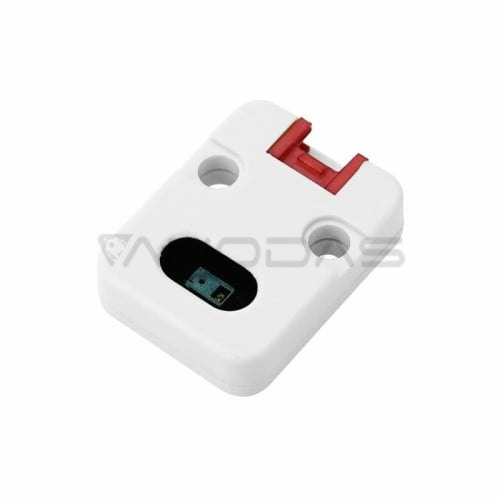

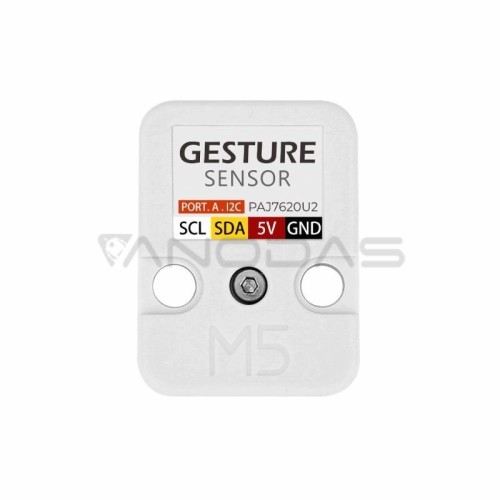

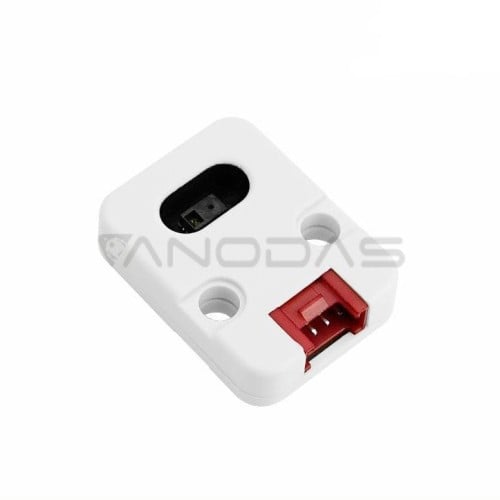

PAJ7620U2 gesture recognition sensor - Unit expansion module for M5Stack development modules

• Recognizable up to 9 types of gestures
• Built-in PAJ7620U2 chip with I2C interface
• Fast and accurate analysis
• Support for development - possibility to add a combination of recognized gestures
• Effective recognition distance ranges from 5 cm to as much as 15 cm
• The module has a built-in IR LED and optical lens, thanks to which the sensor can also operate in low light and darkened environments
• Supported programming platforms include Arduino and UIFlow

• Type: gesture recognition sensor
• Embedded chip: PAJ7620U2
• Number of recognized gestures: up to 9 types
• Effective recognition distance: from 5 cm to 15 cm
• Frequency of gesture recognition:
• standard: 120 Hz
• maximum: 240 Hz
• Gesture support: 9 built-in + 4 software extensions + software algorithm extension support
• Ambient light immunity: < 100,000 lux
• Communication interface: I2C bus
• Interface address: 0x73
• Operating current: 2.2 mA
• Dimensions: 24 x 32 x 8 mm
• Weight: 4.3 g

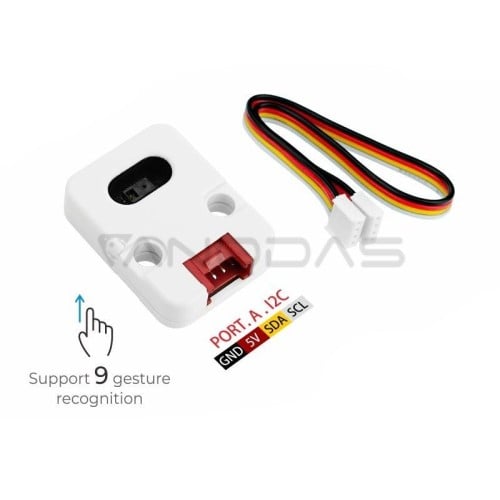

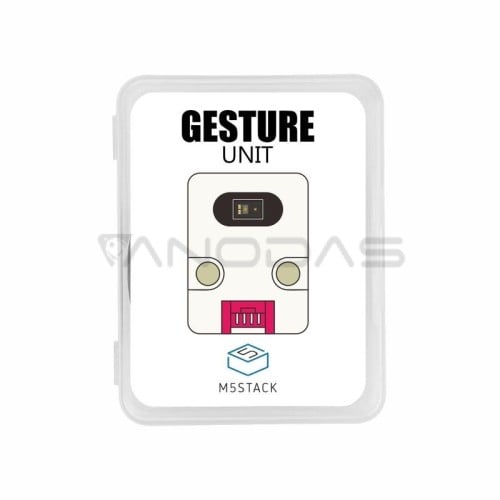

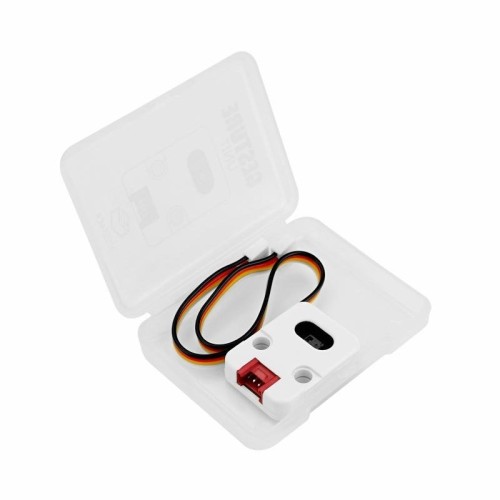

• PAJ7620U2 gesture recognition sensor - extension unit for M5Stack development modules
• Dedicated HY2.0-4P connection cable
