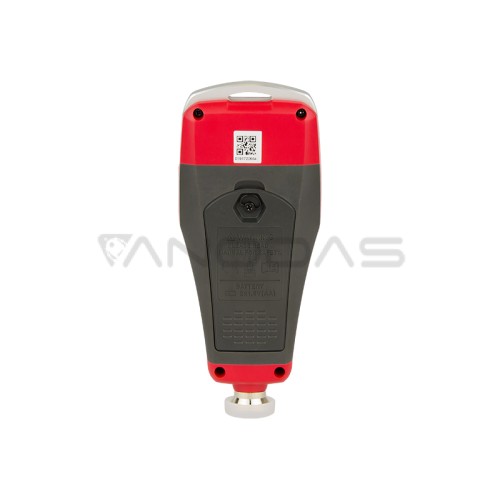

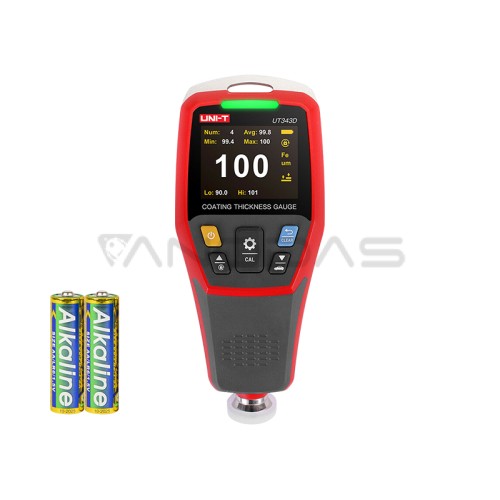

Paint thickness gauge UT343D UNI-T

Brand: UNI-T
Product Code: 3083
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-02-03
133.40€
Ex Tax: 110.25€

Qty

The gauge allows you to measure the thickness of the varnish on ferrous and non-ferrous metals. The unique rapid testing function allows you to determine the thickness range and with the help of a three-color diode and an audible signal, the meter informs you whether the tested coating is within the specified range. The automatic screen flip function helps to read the results regardless of the measurement location. The device's memory allows you to store 500 measurements, which can later be analyzed using dedicated software.

Specifications:

  • Measuring range: 0 ~ 1250 um
  • Accuracy: ±(3%H+1)µm
  • Resolution: 0.1um (0~99.9um); 1um (100-1250um)
  • Method of measurement: one-time / continuous
  • Measurement mode: max/min/avg
  • Metal Type: Iron / Independent
  • LCD screen: 2 inches (320x240 inches)
  • Memory: 500
  • Power supply: 2x3V battery (R03)
  • Weight: 175g
  • Dimensions: 153.5x64.5x41mm
  • Functions:
  • backlight adjustment,
  • automatic screen rotation
  • unit conversion
  • sound alarm
  • LED alarm
  • dedicated software
  • automatic shutdown
  • low battery indicator
