Paint thickness gauge GL-PRO-2-FAZ

Brand: OEM
Product Code: 50-466
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-05-15
143.20€
Ex Tax: 118.35€

Qty

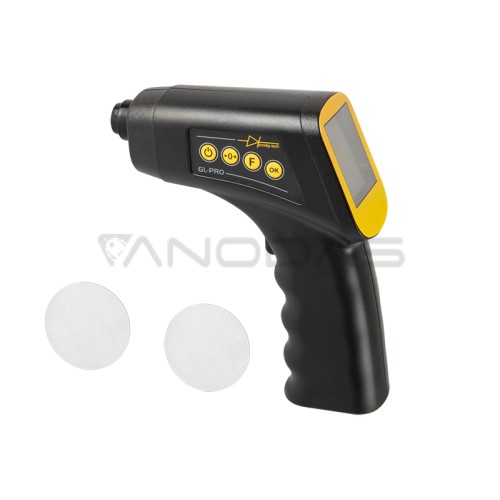

Paint thickness gauge GL-PRO-2-FAZ

Paint meter GL-PRO-2 is available in three versions:

  • – GL-PRO-2-F, measurement only on steel sheets;
  • – GL-PRO-2-FA, measurement on steel and aluminum sheets (automatic recognition of materials);
  • – GL-PRO-2-FAZ, measurement on steel and aluminum sheets (automatic material recognition with zinc coating detection function on steel sheets).
  • The meters use an innovative measuring probe design that allows spot measurements on ferromagnetic and non-magnetic materials (depending on the version), automatically recognizes the material being tested and provides information about the type of material on the screen.
  • A unique feature of the GL-PRO-2-FAZ meters is the automatic recognition of whether the ferromagnetic sheet is coated with a zinc layer or not. This is very important when measuring on the car - it will become clear which body elements have been replaced with cheaper, non-galvanized ones. The survey was completely created by us.
  • The gauge has a calibration function using thickness standards (supplied).
  • The counters have a color, easy-to-read 1.8-inch LCD screen that displays current measurements, measurement statistics and all necessary functions. The operation is performed using a 4-button keyboard and an additional trigger, which illuminates the measurement site when pressed.

Features:

  • Measurement on sheet metal (automatic detection):
  • – steel, Fe (models GL-PRO-2-F, GL-PRO-2-FA, GL-PRO-2-FAZ);
  • – aluminum, Al (models GL-PRO-2-FA, GL-PRO-2-FAZ);
  • Automatic detection of zinc (Zn) on steel sheet (only for GL-PRO-2-FAZ model);
  • Automatic ground detection (not applicable to model GL-PRO-2-F, only for steel sheets);
  • Measuring range 0-2000μm;
  • Divisions 1μm Fe, 5μm nFe;
  • Minimum measuring field nFe 15x15mm, Fe 5x5mm;
  • Built-in flexible probe with a so-called ball;
  • Measurement statistics (number, maximum, minimum, average, previous);
  • 3 working modes: continuous measurement, stop measurement (HOLD 1), stop measurement (HOLD 2);
  • Possibility to manually set the measurement mode, Fe or Al;
  • Measurement memory 960 positions;
  • Measuring assistant for the automotive industry (graphic + text);
  • Calibration (using plates and thickness standard);
  • Sound alarm;
  • LED illuminates the measurement area;
  • Power supply: two AA alkaline batteries (R6);
