OV2311 2Mpx Mono camera Global Shutter with M12 NoIR lens for Nvidia Jetson Nano - Arducam B0221

Brand: ArduCam
Product Code: AN-19210
Availability: 4-6 business days
Planned delivery date after ordering: 2024-12-27
152.50€
Ex Tax: 126.03€

Qty

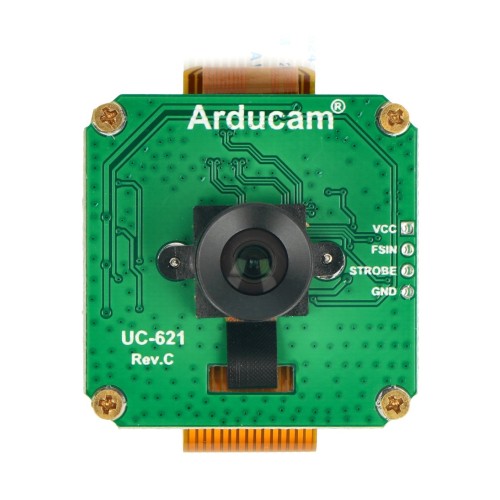

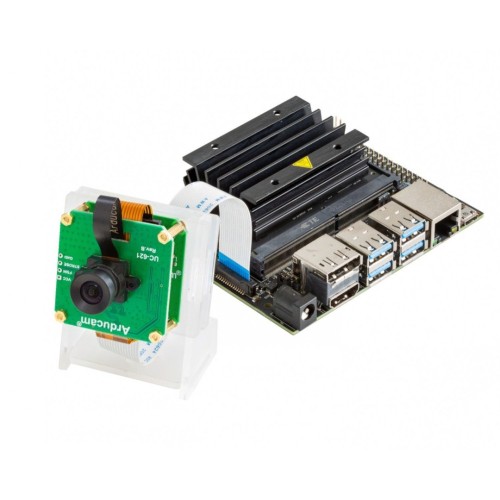

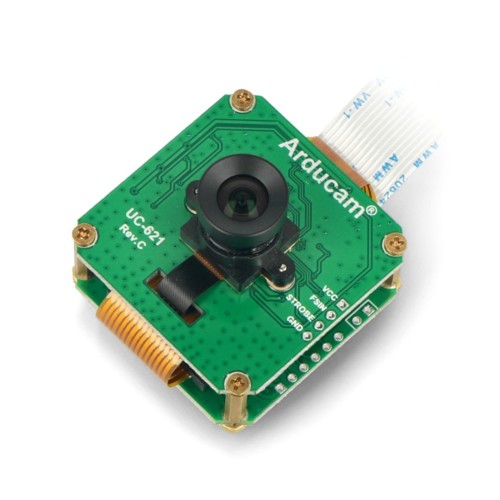

Arducam camera module for minicomputer Nvidia Jetson Nano. The camera is equipped with an OmniVision OV2311 Global Shutter sensor, 2 Mpx monochrome resolution and an M12 lens. The camera communicates with a minicomputer via the CSI-2 interface, without additional elements. Based on a 1/2.9" OMV2311 sensor, it uses OmniPixel3-GS technology, provides full-frame, subsampled and windowed 8/10-bit MIPI images, and can operate at up to 60 fps at full resolution on a 2-band MIPI bus with full user control over image quality. Due to the high resolution of the sensor, it offers extremely accurate eye-tracking capabilities and also achieves high near-infrared quantum efficiency to minimize active illumination power and reduce system power requirements.

Specification:
  • Sensor: OMVOV2311 Global Shutter monochrome
  • Pixel size: 3 x 3 µm
  • Active field size: 1600x1300px
  • Format: 1/2.9"
  • Maximum image transfer rate: 1600 x 1300 / 60 fps
  • Supported image sizes:
    • 1600x1300px
    • 1280x720px
    • 640x480px
  • Input clock frequency: 6 MHz to 27 MHz
  • Maximum S/N Ratio: 37.4 dB
  • Dynamic range: 68 dB
  • Lens mounting: M12 x 0.5P
  • Viewing angle: 83°
  • IR sensitivity: no IR filter
  • Camera interface: 2-line MIPI
  • Output format: RAW 8/10-bit
  • Minimum exposure time: 1 line period (11.3s at 1600x1300px resolution on Nvidia Jetson Nano)

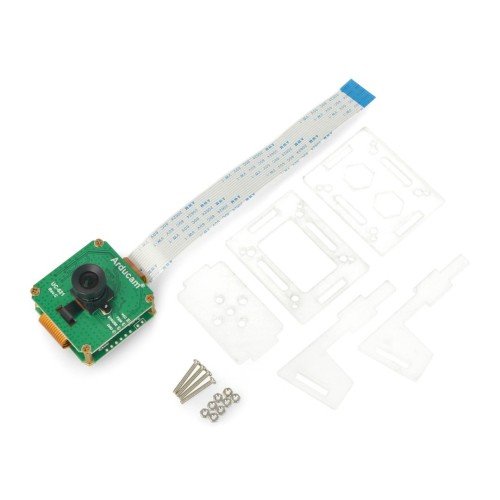

Set includes:
  • Camera for Nvidia Jetson Nano
  • FFC tape
  • Housing components
  • Mounting screws and nuts
