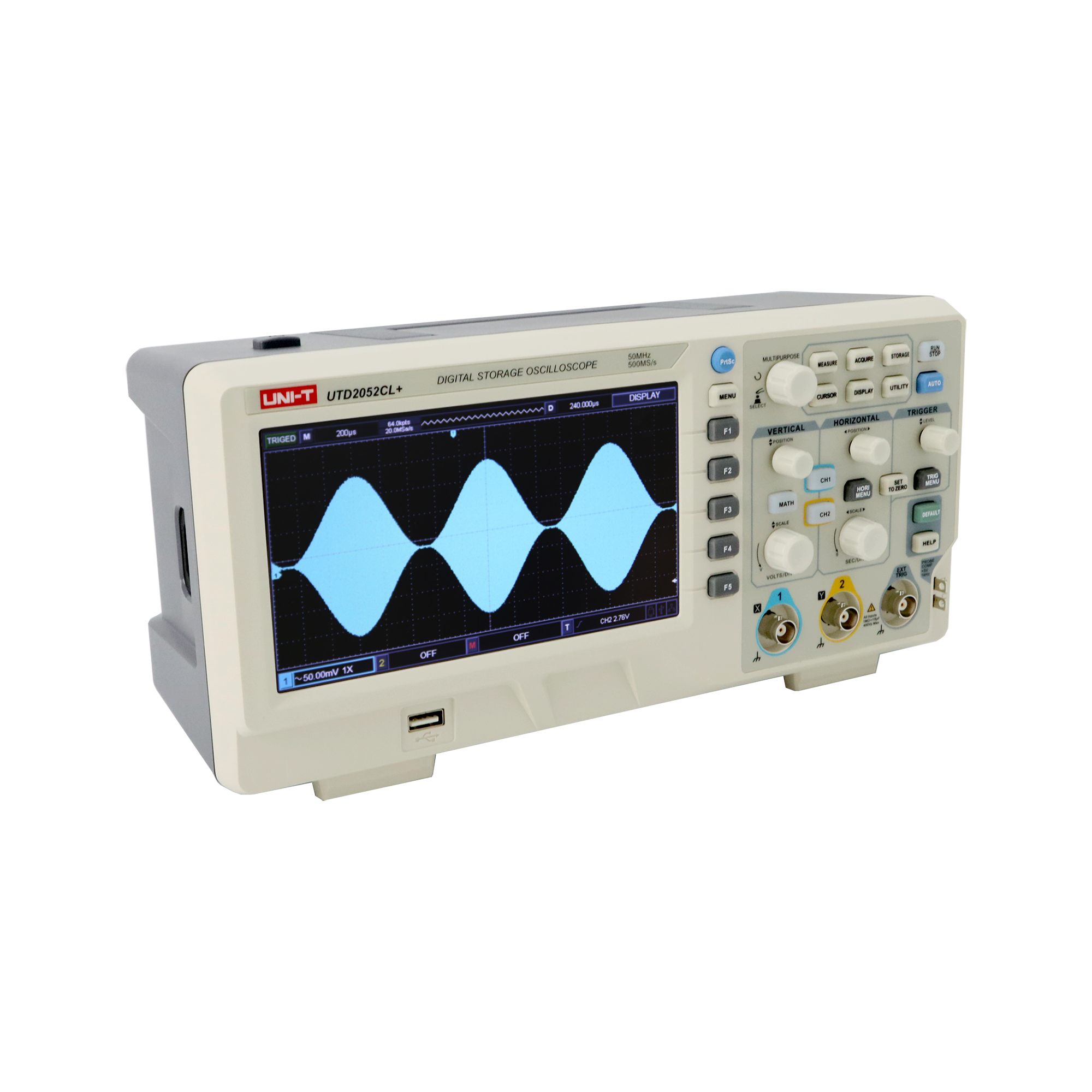

Oscilloscope Uni-T UTD2052CL+

Brand: UNI-T
Product Code: MIE0441
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-01-29
298.90€
Ex Tax: 247.02€

Qty

The Uni-T oscilloscope is an advanced measurement tool designed for professionals, combining high accuracy and ease of use. An excellent choice for signal analysis, diagnostics and science. UNI-T is a reliable and functional device that will meet the requirements both in the laboratory and in the field.

Accurate and fast measurements

The device offers 50 MHz analog bandwidth and a sampling rate of 500 MS/s for accurate signal reading and real-time analysis. With a memory depth of 24 Mpts, the oscilloscope allows you to capture and store long waveforms with high resolution.


The versatility of signal analysis

Various trigger functions such as edge, pulse width, video and variable make the Uni-T UTD2052CL+ oscilloscope suitable for complex measurements. In addition, the ability to perform mathematical operations including addition, subtraction, multiplication and division enables advanced signal analysis.


Ergonomics and ease of use

The oscilloscope, equipped with a 7-inch diagonal TFT LED screen with a resolution of 800 x 480 pixels, provides a clear and detailed view of the waveforms. Compact dimensions (306x138x124mm) and low weight (2.5kg) make the device easy to carry and store, making it ideal for mobile and outdoor use.


Specifications:

  • Analog bandwidth: 50 MHz
  • Rise time: <=7 ns
  • Number of channels: 2
  • Sampling rate: 500 MS/s
  • Memory depth: 24 Mpts
  • Waveform capture speed: 5000 wfms/s
  • Time base: 2 ns/div ~ 50 s/div
  • Vertical sensitivity: 1mV/div ~ 20V/div
  • Measurement data recording method: setup, wave, bitmap
  • Triggering methods: edge, pulse width, video signal, variable
  • Mathematical operations: addition, subtraction, multiplication, division
  • Interfaces: USB Host, USB Device, Pass/Fail
  • Power supply: 100V~240V AC rms, 50/60 Hz
  • Display: 7 inch TFT LED (800x480 px)
  • Dimensions: 306x138x124mm
  • Weight: 2.5kg
