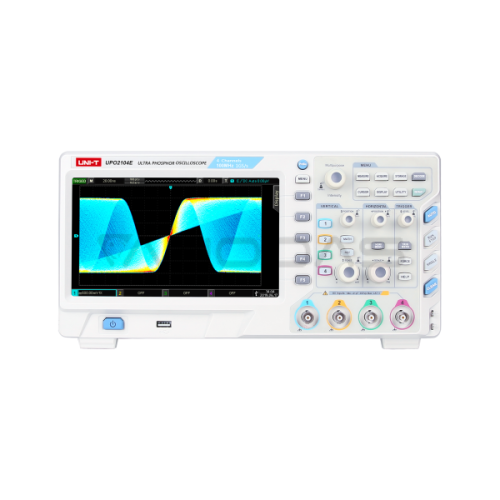

Oscilloscope Uni-t UPO2104E - 100MHz

Brand: UNI-T
Product Code: MIE0443
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2024-11-21
783.80€
Ex Tax: 647.77€

Qty

The UPO2104E is a 100MHz handheld digital oscilloscope and multimeter in one

Specification:

  • Analogue bandwidth: 100 MHz
  • Take-off time: <= 3.5 ns
  • Number of channels: 4
  • Selection speed: 1 GS / s
  • Memory depth: 56 Mps (1 channel)
  • Waveform capture rate: 83,000 wfms / s
  • Time base: 5 ns / dal. ~ 50 s / dal
  • Input resistance: (1MOhm ± 2%) / (21 pF ± 3 pF)
  • Vertical sensitivity: 1mV / div ~ 20V / div (1M?)
  • Signal amplification accuracy: <= ± 4%
  • Activation methods: edge, pulse width, window, N edge, delay, timeout, duration, setup / hold, slope, video
  • Serial bus decoding options: RS232, I2C
  • Waveform operations: A + B, A-B, AxB, A / B, FFT, logic operations, digital filtering, advanced
  • Automatic measurement 34 parameters Maximum, minimum, peak-to-peak, median, top, bottom, amplitude, period average, average, periodic RMS, RMS, overshoot, pre-firing, frequency, period, rise time, fall time, positive pulse width, negative pulse width, take-off delay, fall delay, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, positive working factor, negative working factor, phase, range, cycle range
  • Types of display of results: 5 measurements are displayed simultaneously
  • Measurement statistics: Average, Max., Min., Standard deviation
  • Frequency window: 6 bits

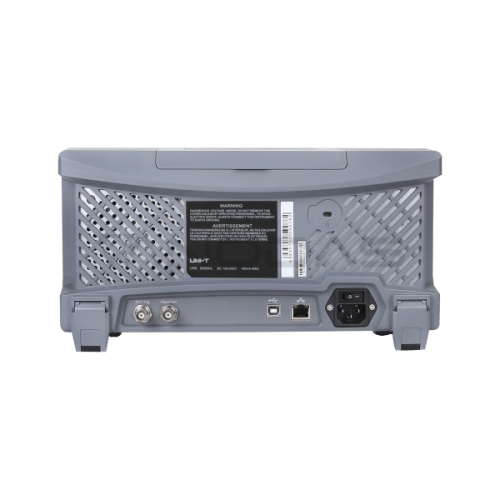

  • Interfaces: USB-Host, USB-Device, LAN, EXT Trig, AUX Out
  • Power supply: 100V ~ 240 VAC, 45-440 Hz
  • Screen: 8-inch TFT LCD, WVGA (800x480px)
  • Weight: 3.5kg
  • Dimensions: 336x164x108mm
