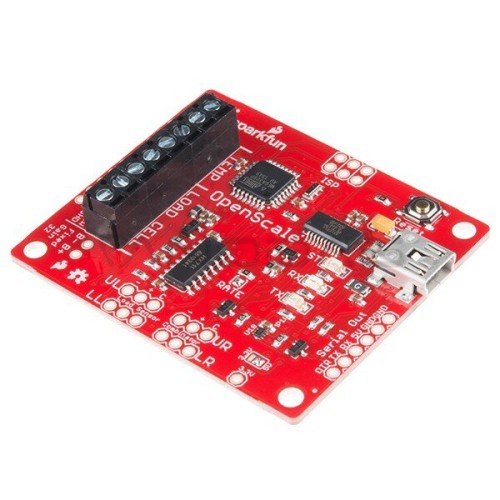

OpenScale, weight and temperature module, SparkFun SEN-13261

Module for measuring the weight and temperature. It is used to read data from the strain-gauge sensors. It allows for calibration, setting the sampling frequency and accuracy. It communicates via UART with the built-in miniUSB port. It works with a voltage of 5 V.

Module has:

• Microcontroller ATmega 328P for addressing and data transfer
• FT231 with a miniUSB port and for serial transmission
• HX711: 24-bit A/D converter for measuring the weight
• TMP102 for registering the temperature of the environment


Specification:

• Supply voltage: 5 V
• Consumption of the current: up to 100 mA
• The possibility of choosing the sampling rates: 10 sps to 80 sps
• The sensor of internal and external temperature
• Communication: UART from 1200 bps to 1000000 bps (by default 9600 b/s)
• Pins: the miniUSB port, screw connections, and holes for goldpin connectors - 2.54 mm
• Module dimensions: 55 x 47 mm
