Openable patio gate drive - ETM-FOLD

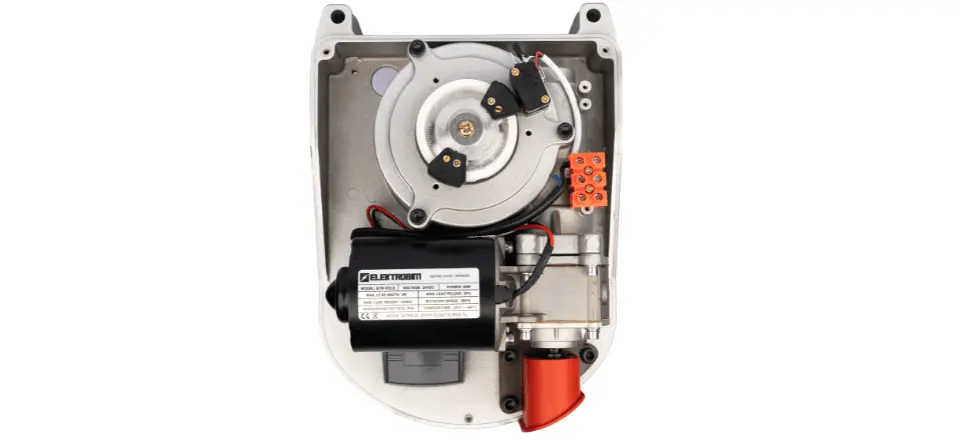

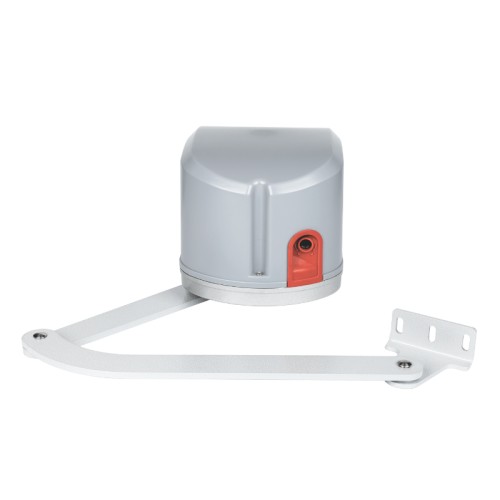

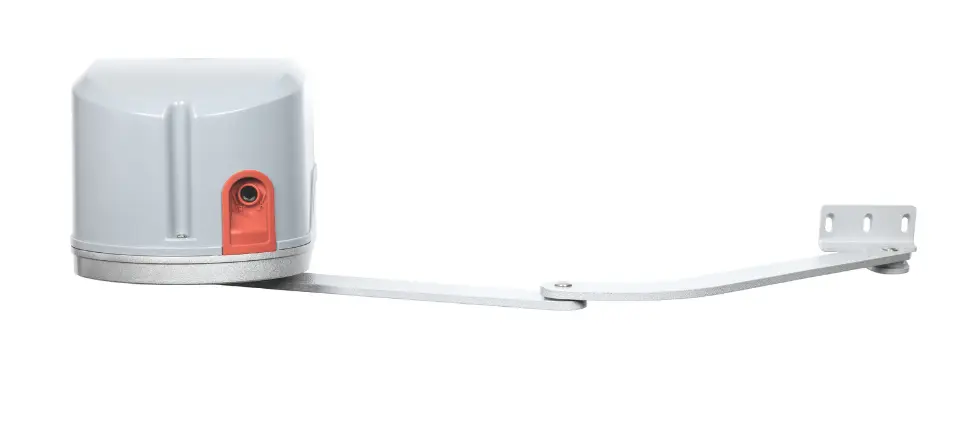

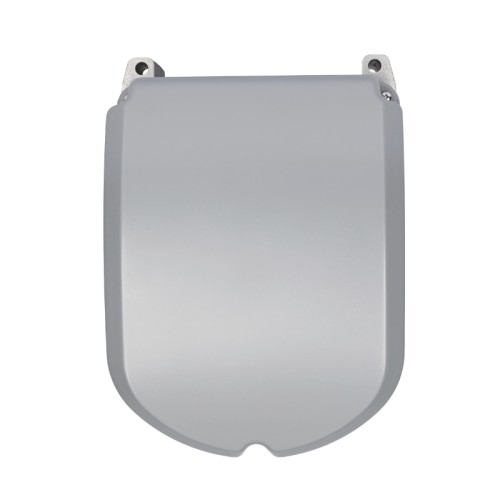

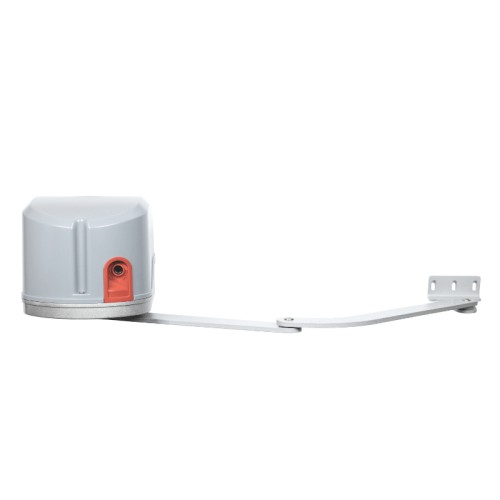

The ETM FOLD drive is the ideal solution for single-door gates installed on wide posts, where the hinge depth is up to 32 cm. The automation is perfect for gates with a maximum leaf width of up to 3 meters and a weight of up to 300 kg*. Made from the highest quality materials, ETM FOLD guarantees durability and resistance to changing weather conditions and time. The body is made of durable plastic and effectively protects the 80W motor and the metal gears that drive the wings using steel, broken arms. In the event of a power failure, the actuators can be easily disengaged and the gate opened manually using the included keys.

A new, modernized version of the drive

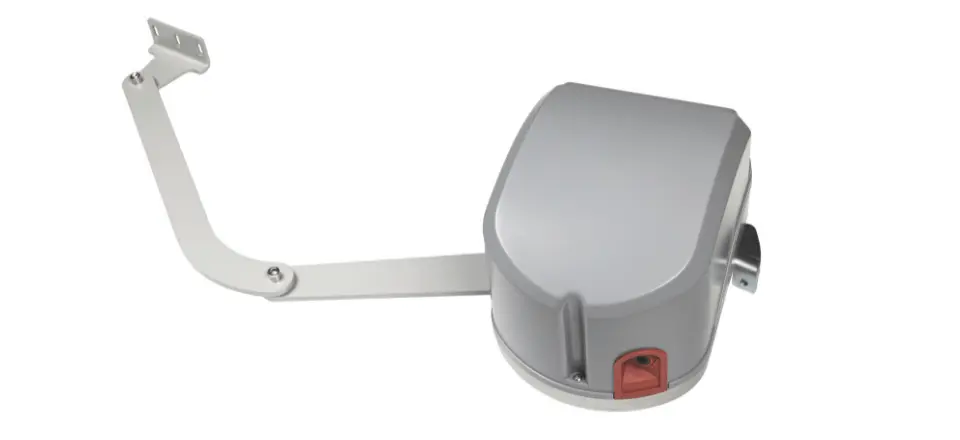

Based on customer needs, we continuously improve our products to meet user requirements and be reliable. To this end, we redesigned the single-door gate drive for wide posts and made some significant changes. The first are mechanical limit switches placed in a convenient place for the user. The second is a modern design that not only improves aesthetics, but also facilitates installation and use due to the axial arrangement of the lever drive shaft. In addition, compared to the previous version, we have increased the performance parameters of the gate frames, ensuring even greater efficiency and functionality.

Easy assembly

You can easily install our gate operators yourself without losing your warranty. This is no different with the ETM-FOLD drive as the product comes with simple and clear instructions. With its help, you can overcome this challenge in one afternoon and then be proud of the results of your work. The tutorial videos on our YouTube channel will also be helpful. However, if you have any questions during the assembly phase, don't worry. Our technical support department will help you clear all doubts. Importantly, ETM-FOLD does not require welding during assembly, which undoubtedly makes installation even easier. It's worth noting that anchor points can be calculated quickly using our calculator. The operating range of the gate leaf is determined using adjustable mechanical limit switches.

No electricity? That's not a problem!

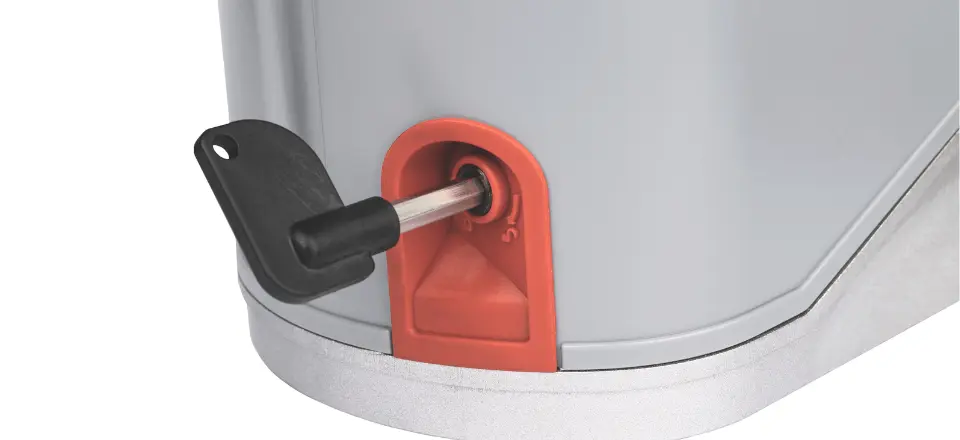

If your area experiences frequent power outages or you're concerned about unexpected outages, you may want to include battery backups in your system. Thanks to them, the ETM FOLD single-door gate drive will work independently of the power supply, allowing the gate to be opened and closed several times. In addition, the ETM FOLD gate actuators have an actuator release function that allows the gate to be opened manually without disconnecting the actuator. This practical feature is useful not only in the event of a power outage, but also when installing a drive.

Configuration freedom thanks to the ETM-DGL control panel

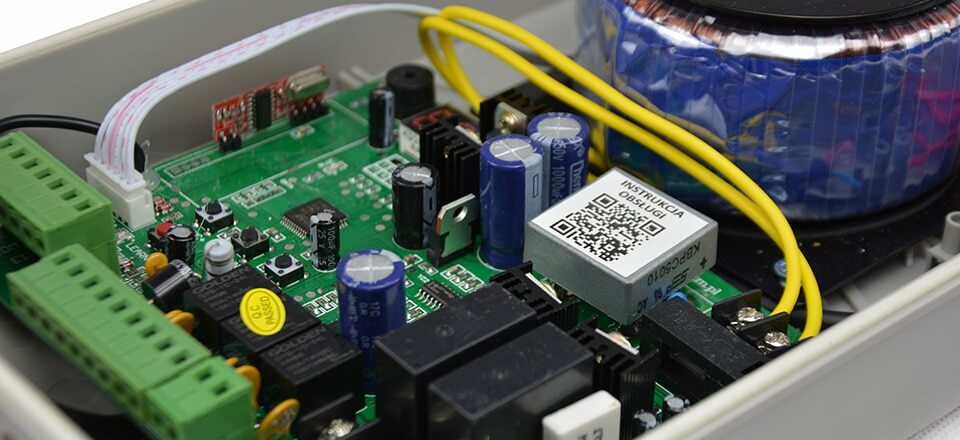

The ETM-FOLD double-door gate operator with wide columns has an ETM-DGL control unit. It is a design based on the proven and reliable ETM-DG2 swing gate controller for many years. The control electronics, which are not directly integrated with the actuators, simplify the actuator design, which means simple operation, fault-free operation and long-term actuator satisfaction. As we know, every gateway is different and every user has different performance requirements. For this reason, we allow quite extensive customization of the control panel, which means that it can be easily customized to suit your needs.

In the drive control panel, you can configure, among other things:

• soft start/stop to ensure proper system operation,
• automatic closing of the gate after opening,
• advance sheet work overlap time,
• gate functions,
• value of overload parameters to prevent crushing,
• time protection value.

Specifications:

• Motor power: 24VDC 80W
• Max. length of the opening sheet: 3 m
• Max. opening leaf weight: 300 kg
• Minimum column width: 17 cm
• Sealing class: IP54
• Control panel parameters:
• - Supply voltage: 230V AC
• - Drive voltage: 24V DC
• - Energy consumption: 160W
• - Receiver frequency: 433.92MHz
• - Max. control distance: 100 m
• - Dimensions: 260x185x90mm
• - Working temperature: -25~+65 C
• - Sealing class: IP55
• - Protection: thermal/amperometric/time
