Official Cooling Fan for NVIDIA Jetson Xavier NX - NX-FAN-PWM - Waveshare 21600

Brand: Nvidia
Product Code: AN-21613
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
18.00€
Ex Tax: 14.88€

Qty

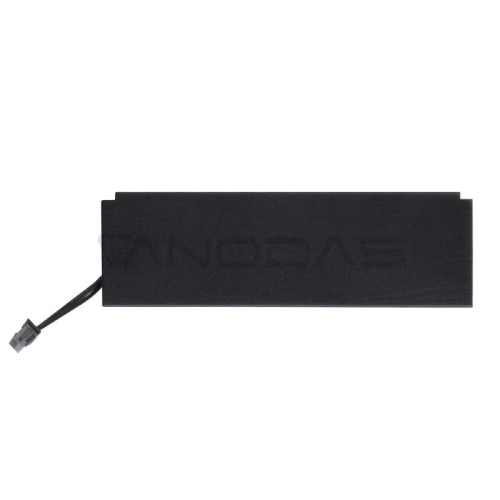

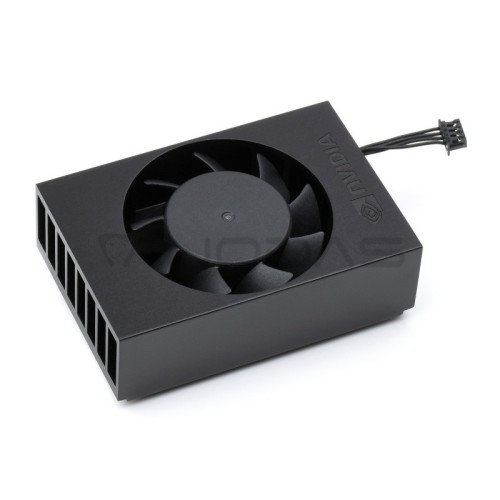

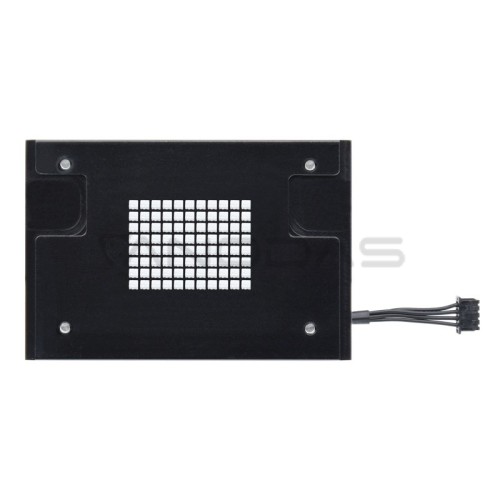

The official fan is designed to cool the NVIDIA Jetson Xavier NX minicomputer. The fan is controlled by the PWM signal, what's more, the user can adjust the speed of rotation. The rotation speed is 5500 ± 10% RPM. The supply voltage is 5 V. NX-FAN-PWM effectively cools the minicomputer, which significantly improves the operating parameters that are necessary for more demanding applications. The fan is enclosed in aluminum housing. On its underside, there is silicone grease that should not be tampered with during assembly.
Specifications:

  • Type: fan
  • Manufacturer part number: NX-FAN-PWM
  • Purpose: for NVIDIA Jetson Xavier NX
  • Control: PWM signal
  • Adjustable PWM speed: yes
  • Rotation: 5500 ± 10% RPM
  • Input voltage: 5 V DC
  • Power: 0.65 W / 5 V / 0.13 A
  • Housing: integrated
  • Housing material: aluminum
  • Black color
  • Conclusions: cables terminated with a plug
  • Cord Length: 37 mm ± 3 mm
  • Fan and housing dimensions: 39 (± 0.25) x 57.8 (± 0.2) x 18 (± 0.25) mm
Set includes:
  • Official fan for NVIDIA Jetson Xavier NX - NX-FAN-PWM
  • Flexible bracket and height-limited bolts
