OdSeven Camera HD IR-CUT OV5647 5Mpx - day/night IR for Raspberry Pi + IR modules

Brand: OdSeven
Product Code: AN-07599
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
23.80€ 29.80€
Ex Tax: 19.67€

Qty

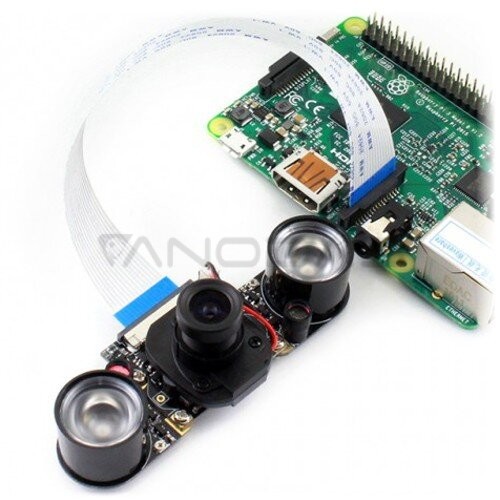

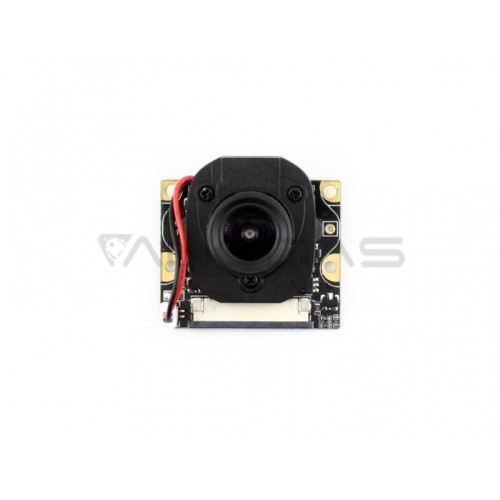

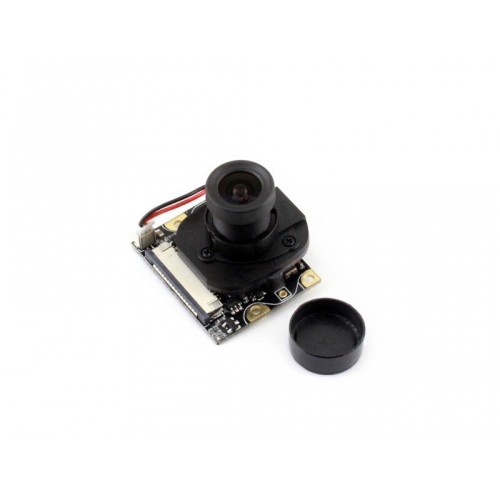

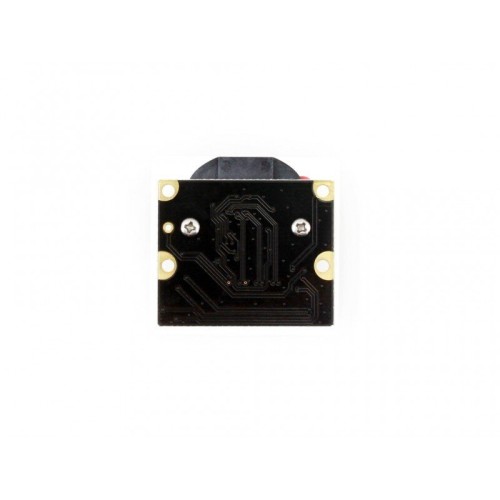

Module with the camera, connected to a dedicated connector of minicomputer Raspberry Pi, version 4, 3, 2, B+, A+. It has a matrix CCD 1/4" with a resolution of 5 Mpx, supports HD 1080px mode. The camera allows for recording excellent images during the day and night with the removable IR-CUT filter. The kit also includes the backlight modules of the IR 3 W.

Specification:

  • Camera compatible with Raspberry Pi, version 4, 3, 2, B+, A+ and older A and B
  • Matrix: 5 MPx
  • Sensor: OV5647
  • CCD Matrix: 1/4"
  • The angle of view - diagonal: 72,4°
  • Sent: 1,8
  • Focal length: 3.6 mm variable
  • It has 4 mounting holes
  • Dimensions: 32 x 31 mm

Set includes:

  • Camera 5 MPx
  • Tape to connect to the Raspberry Pi

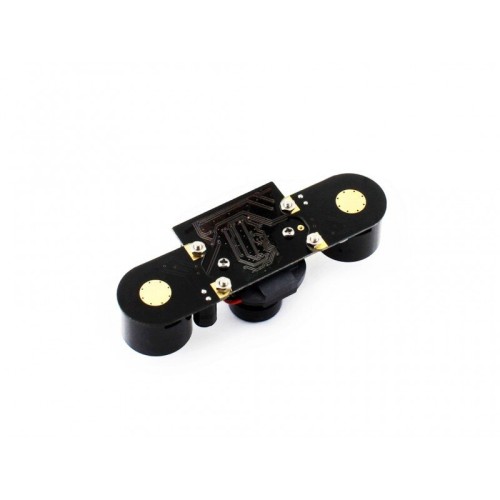

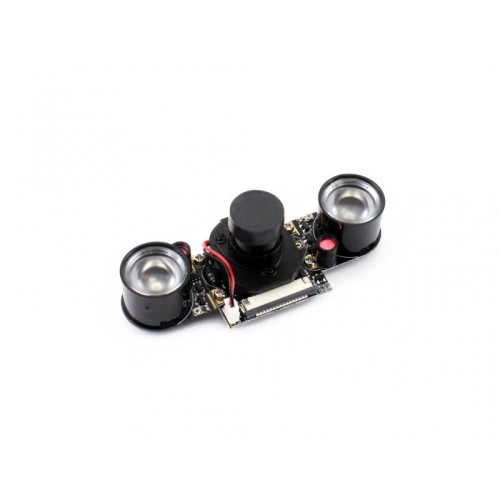

  • 2x IR backlight modules with the power of 3 W
  • Mounting screws
