Nvidia Jetson I/O Base-A - expansion board for Nvidia Jeston Nano - Waveshare 21650

Brand: Waveshare
Product Code: AN-21867
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
93.70€
Ex Tax: 77.44€

Qty

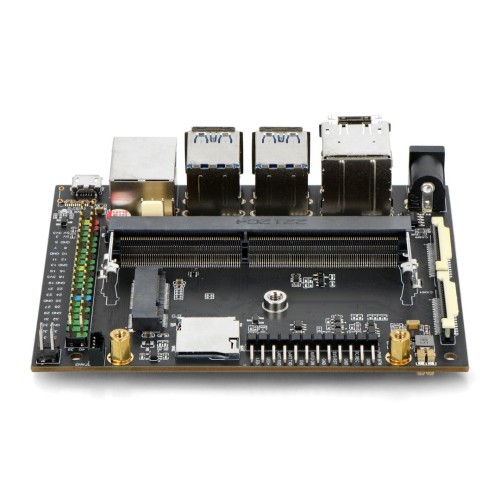

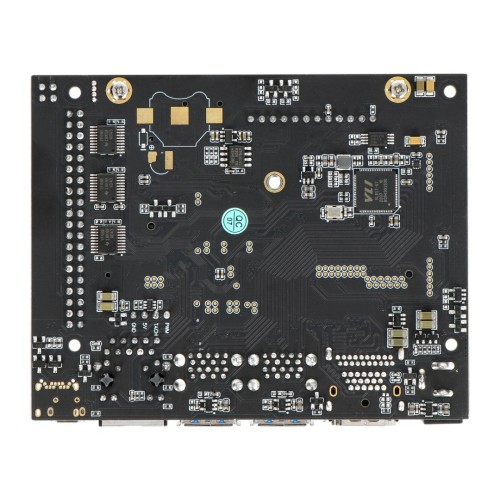

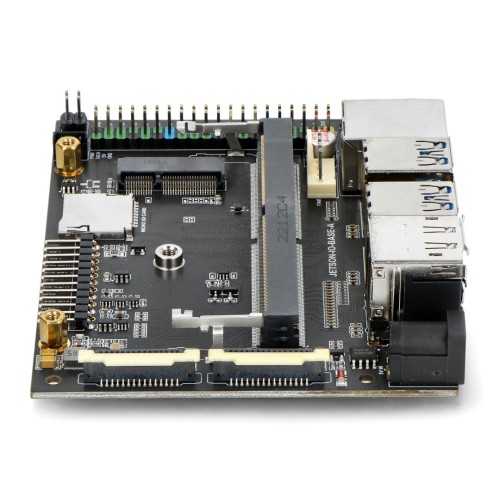

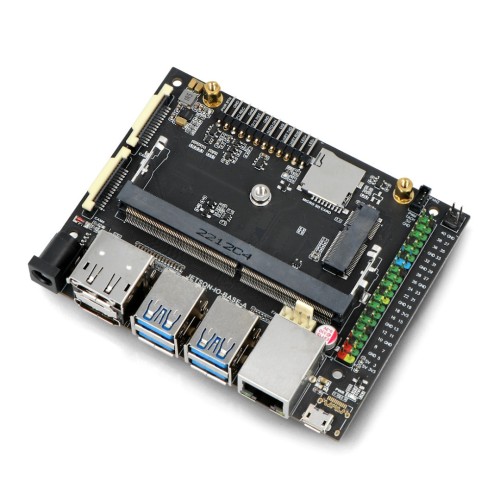

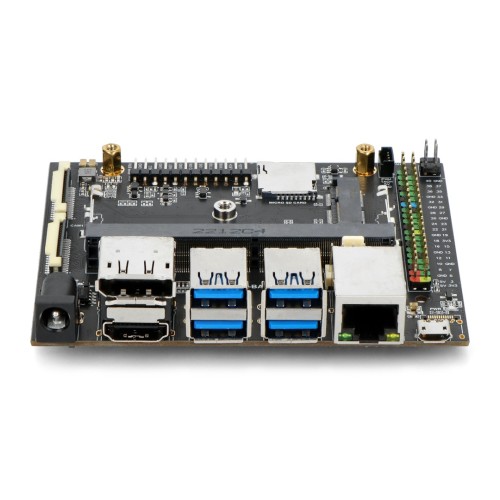

The Jetson I/O Base-A board was designed to work with the Nvidia Jetson Nano module. On the board, you can find an Ethernet Gigabit port, 4x USB 3.0, HDMI, DisplayPort, GPIO, I2C, I2S, SPI, UART, 2x camera connectors and a microSD card slot. Nvidia Jetson Nano is installed in the extension through a dedicated SODIMM connector. On the board, you can also find an M.2 key E slot, to which you can connect, for example, a WiFi module. The Nvidia Jetson Nano module is based on a quad-core ARM Cortex A57 clocked at 1.43 GHz and an Nvidia Maxwell graphics processor with 128 CUDA cores. Jetson Nano has 4 GB of DDR4 RAM - the Nvidia module must be purchased separately.

Specification:
  • Type: expansion board
  • Designed for Nvidia Jetson Nano
  • Connector: 260-pin
  • Interfaces:
    • microUSB
    • Gigabit Ethernet
    • 4x USB 3.0
    • M.2 key E
    • HDMI
    • DisplayPort
  • Power connector: DC 5.5 / 2.1 mm
  • Dimensions: 100 x 80 x 29 mm

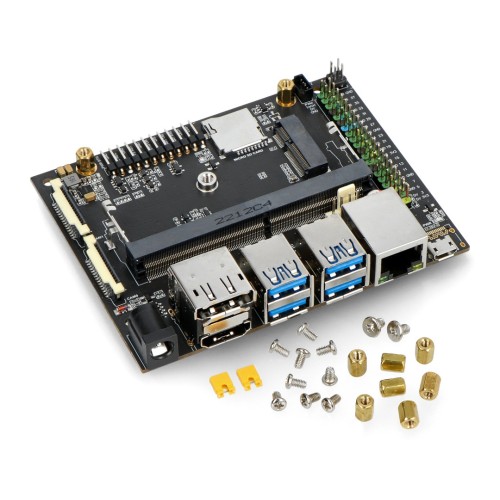

Set includes:
  • Nvidia Jetson I/O Base-A - expansion board for Nvidia Jeston Nano - Waveshare 21650
  • Set of screws, spacers and jumpers
