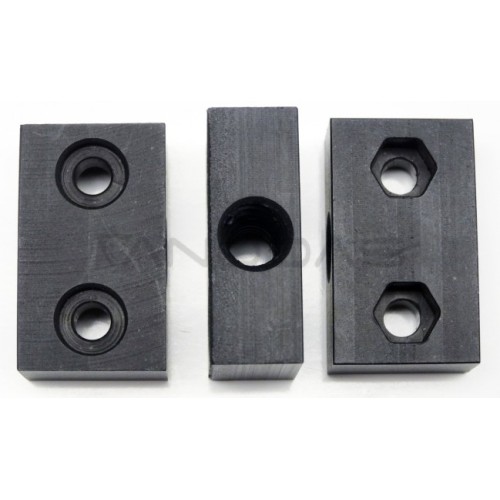

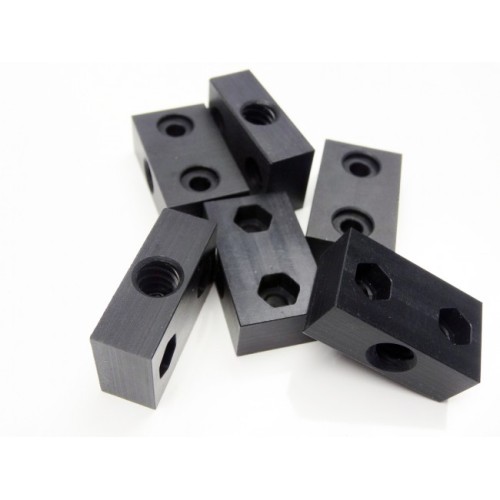

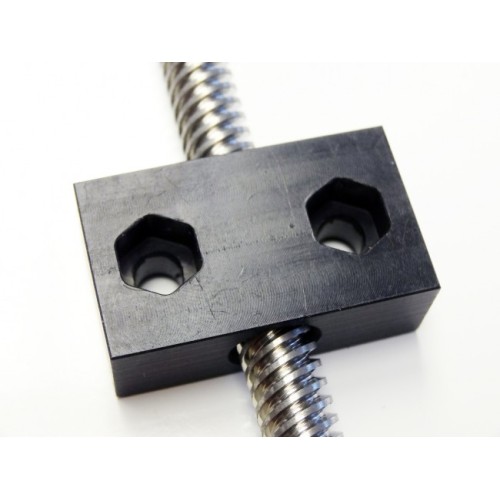

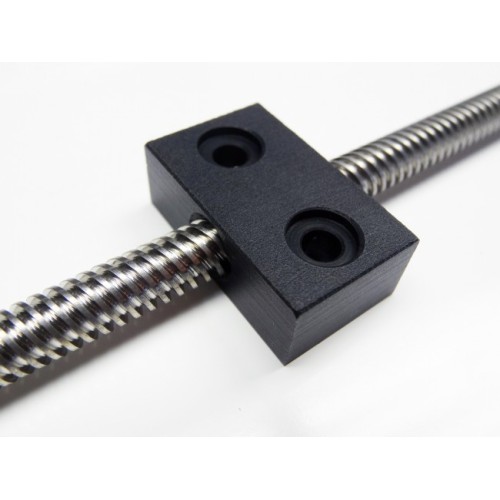

ACME Nut Block – For 8mm ACME Lead Screw TR8x8

Product Code: HW1079GC
Availability: Vilnius Store In Stock
Kaunas Store In Stock
Central Warehouse Out of Stock
4.36€ 8.50€
Ex Tax: 3.60€

Qty

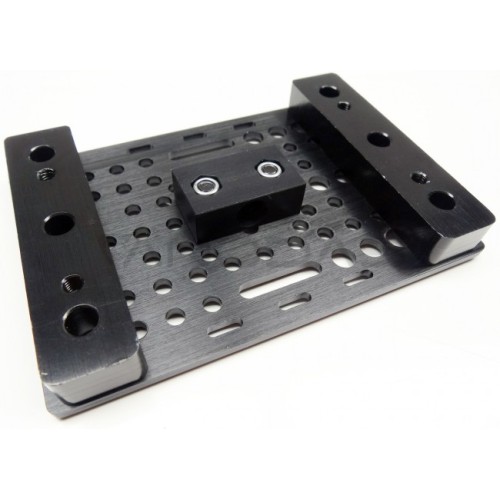

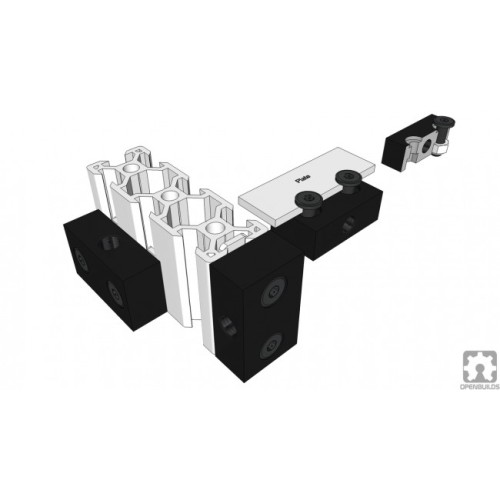

This 8mm Acme Nut Block serves dual purpose in that it can be mounted to the bottom of a 3 mm/1/8″ plate using M5 nylon insert nuts and 15mm M5 screws or can also be mounted directly to V-Slot utilising two channels with 15mm M5 low profile screws and two tee nuts.

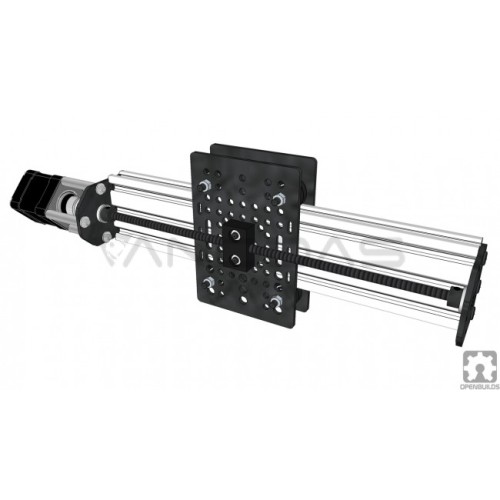

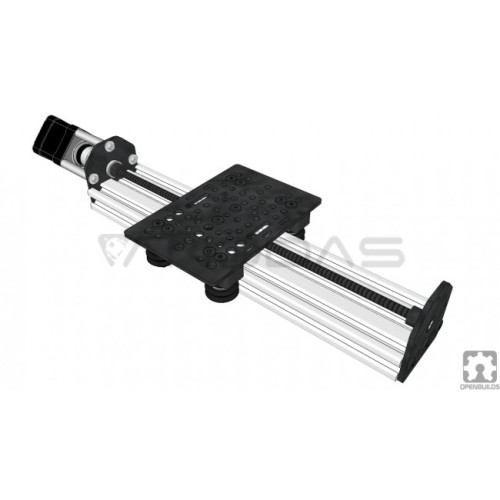

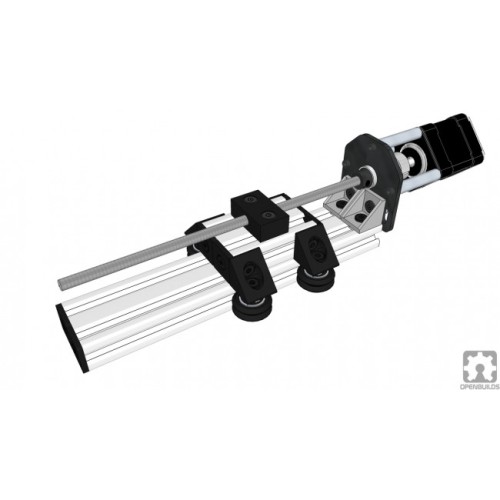

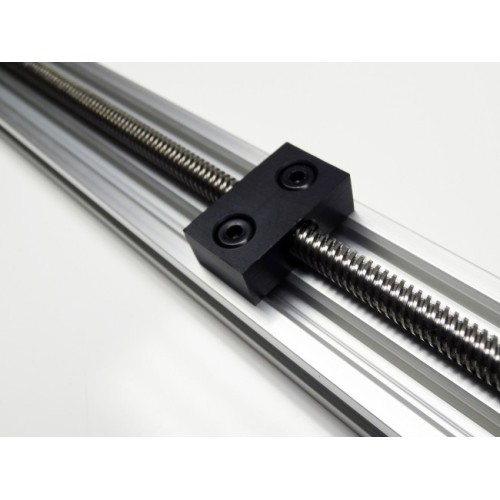

These mounting choices allow for a variety of modular machine applications. You can mount this block along any length of V-Slot to create your linear motion.

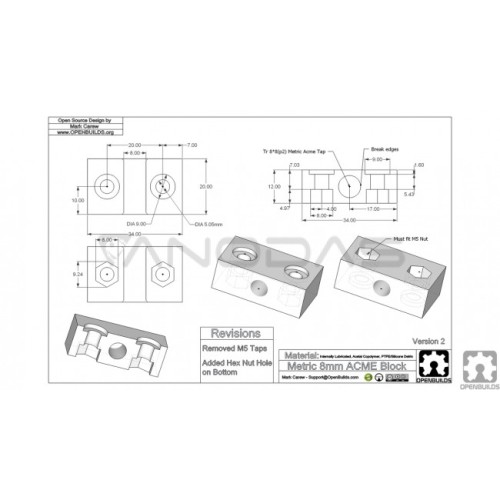

Specification:

  • Model: NUTBLOCK-TR8*8
  • Material: POM
  • Size: T12 x 20 x 34 mm
  • Tr8*8 (p2) Metric Acme Tap
  • Pitch: 2mm
  • Start: 4
  • Lead: 8mm
  • Lock Nut: 2x M5 Nylon lock nuts
