Numato Lab - 4-channel relay module 12V 7A / 250VAC + 6GPIO - USB

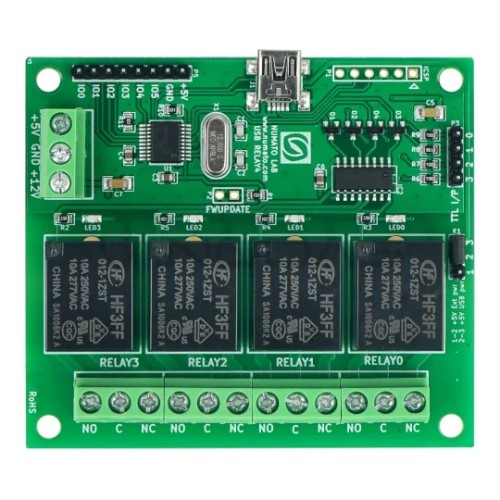

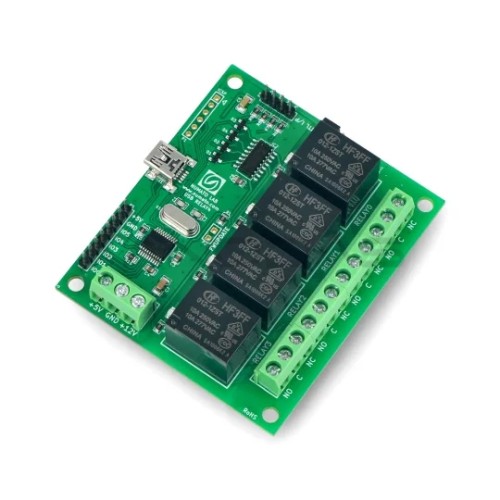

The module is equipped with four relays JQC-3FC with a coil supplied with a voltage of 12 V. The system is controlled directly from the USB connector. In addition, the module has 6 GPIO pins, 5 of them working as analog inputs. Works with a voltage of 5 V.

Specification:

• 4 relay
• The maximum voltage of contacts:
• 250 V AC / 7 A
• 125 V AC / 10 A
• 120 V DC / 12 A
• 28 V DC / 10 A
• Screw terminal block connectors
• Control: UART interface or goldpin pins
• The number of GPIO pins: 6 (goldpin 2.54 mm)
• The number of analog outputs: 5 (can work as a digital)
• Voltage: 5 V (miniUSB)
• The maximum performance of the outputs: 25 mA
• The working voltage of pins: 5 V
• Relays require 12 V power
• Resolution of the A/C transmitter: 10-bit
• Connector: miniUSB (sold separately)
• Module dimensions: 78 x 68 mm
