NeoPixel rotary encoder - I2C - STEMMA QT/Qwiic - Adafruit 4991

Brand: Adafruit
Product Code: AN-19787
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
12.80€
Ex Tax: 10.58€

Qty

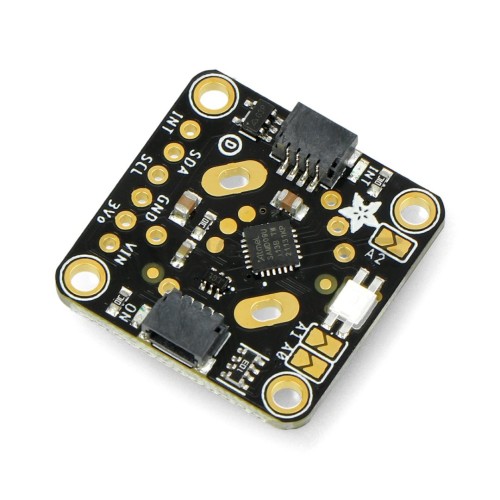

Rotary encoder manufactured by Adafruit. Equipped with SAMD09 chip, uses I2C communication interface. It has STEMMA QT/Qwiic connectors and leads in form of solder fields. Additionally, the module is equipped with NeoPixel LEDs, configurable, which can light up in any color.

Specification:
  • Type: rotary encoder
  • Supply voltage: from 3 V to 5 V
  • Communication interface: I2C bus
  • Interface address: 0x36
  • Connectors:
    • STEMMA QT/Qwiic
    • Solder fields
  • Embedded LEDs:
    • NeoPixel - any color can be displayed
    • Green and red LEDs - indicating the operation status
  • Module dimensions: 25.6 x 25.3 x 4.6 mm
  • Weight: 2.4 g
Set includes:
  • NeoPixel rotary encoder - I2C - STEMMA QT/Qwiic
  • 1x6 goldpin list - 2.54 mm pitch
