NanoPi NEO v1.4 - Allwinner H3 Quad Core 1.2GHz + 512MB RAM - with connectors
Brand: FriendlyARM
Product Code: AN-14633
Availability: 4-6 business days
Planned delivery date after ordering: 2024-10-25
Product Code: AN-14633
Availability: 4-6 business days
Planned delivery date after ordering: 2024-10-25
Ex Tax: 24.05€

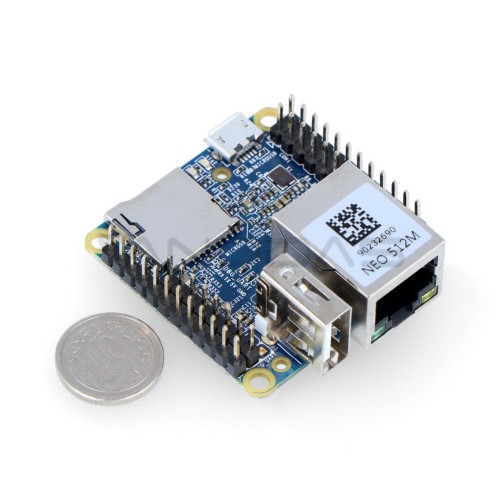

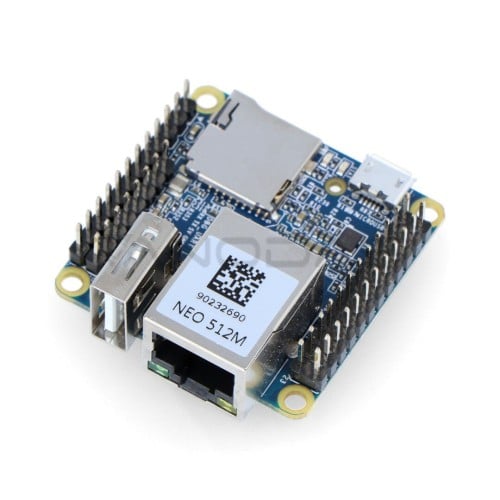

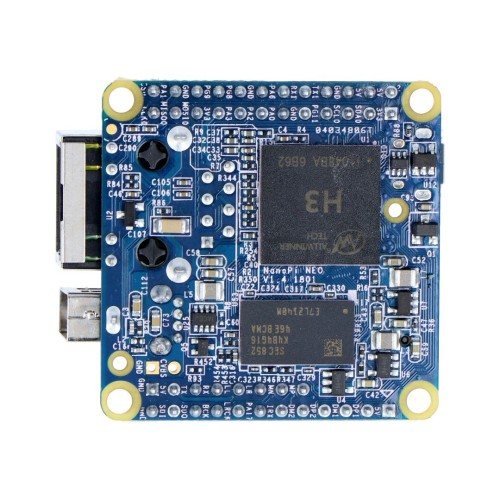

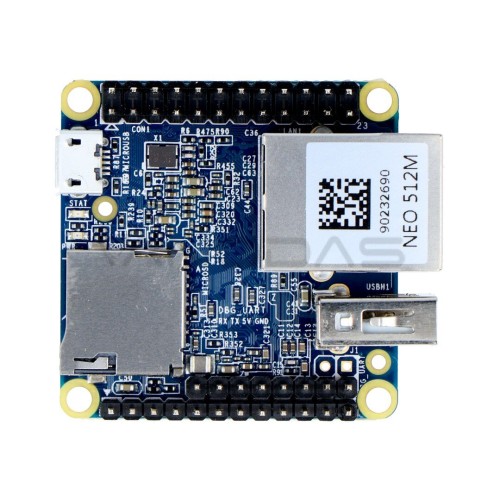

NanoPi miniature computer in Neo v1.4 version with Allwinner H3 quad-core ARM Cortex-A7 1.2 GHz processor. The board has 512 MB DDR3 RAM, built-in Ethernet port and USB + 2x USB Host socket on 2.54 mm pins, 36 GPIO, microSD card connection. Works with manufacturer's u-boot and UbuntuCore systems. The V1.4 version has a 4-pin audio interface, a 2-pin CVBS interface, supports IC power control, and has holes for installing a heatsink.
NanoPi Neo minicomputer communication
The minicomputer has basic communication interfaces that can be found in PC-class office computers. In addition to the previously mentioned audio and video connectors, the user has at their disposal:
- 1x USB A connector + 2x USB Host on 2.54 mm pins, to which you can connect e.g. a mouse, keyboard, WiFi card or pen drive. If it turns out that there are too few sockets, you can increase their number using an external USB HUB. The interfaces led out on the pins can be connected using cables.
- Ethernet socket, i.e. the possibility of direct connection to a LAN network.
- GPIO x 36 pin - general purpose outputs / inputs, which can be used to operate LEDs, buttons, engine controllers. These include pins supporting the following interfaces: I2C, SPI and UART. The pins must be soldered yourself, 2.54 mm raster goldpin strips can be purchased in our store.
- microSD slot - a slot for a microSD memory card on which the operating system can be installed.
NanoPi Neo power supply
The system uses a microUSB connector as a power source. The manufacturer recommends that the connection voltage should be 5.0V, and the current efficiency of the used power source should be at least 2.0A. Our offer includes power supplies that meet these parameters.
Specifications:
- Model: NanoPi Neo
- Processor: Allwinner H3
- Core: Quad-core ARM Cortex A7
- Systems: u-boot, UbuntuCore
- Clock: 1.2 GHz
- Memory RAM: 512 MB
- Memory: microSD card
- GPIO socket: 36 pin connector
- Power supply: 5V / 2A - microUSB
- Dimensions: 40x40mm
- USB: 1 x USB socket A, 2 x USB on 2.54mm pins
- Network interface: Ethernet 10/100 Mbps
- Video:-
- Audio: audio output and microphone, on the GPIO connector
- Interface: UART, SPI, I2C, GPIO, PWM
- Debugging tool: serial port 4 pin / 2.54mm
- Additional: Integrated LED, CVBS 2-pin interface, supports IC power management, radiator mounting holes
