NanoBeacon Lite Board - IN100 - SparkFun WRL-21293

Brand: Sparkfun
Product Code: AN-22821
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
12.60€
Ex Tax: 10.41€

Qty

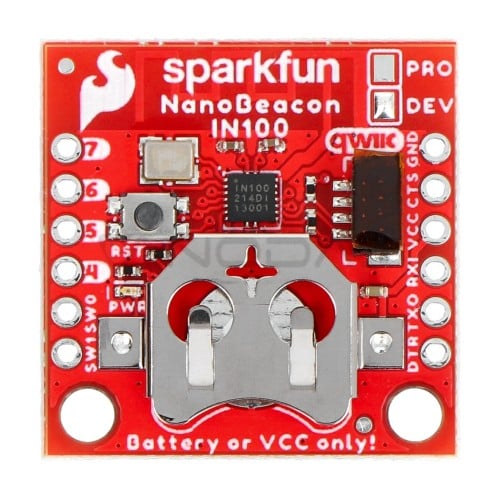

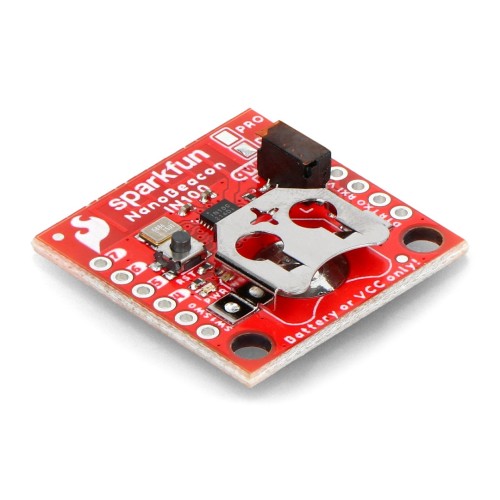

The NanoBeacon Lite Board with the IN100 chip extends the functionality of projects with a wireless, low-power Bluetooth 2.4 GHz signal. It enables wireless sensor monitoring and can also be used to create your own beacon for real-time location monitoring. The NanoBeacon Lite Board can be powered by a CR1225 3 V battery (not included), the appropriate socket has been placed in the back of the board. At the front of the module, the manufacturer has also placed a place to make a note, which can be useful when carrying out projects with a large number of sensors.

Main features:
  • NanoBeacon features a new protocol implemented directly on the board that eliminates the need for programming. Just configure the module and use it with the provided desktop application that allows you to fully customize the application
  • NanoBeacon supports a wide range of interfaces, including I2C, ADC, 1-wire and GPIO, which allows you to connect the most popular sensors
  • The NanoBeacon is well suited for a wide range of IoT applications, including asset management, active RFID, smart sensors, and even smart healthcare application development
  • NanoBeacon supports the 2.4 GHz RF frequency band and the MedRadio band (2.36 GHz)
Specification:
  • Built-in chip: IN100
  • Version: Lite
  • Wireless communication: Bluetooth 2.4 GHz
  • Beacon modes: Proprietary BT, Google Eddystone, Apple iBeacon
  • Supply voltage range: 1.1 V to 3.6 V
  • Battery: 3 V CR1225 (built-in holder on board)
  • Power consumption: < 650 nA in sleep mode
  • Reset button
  • Power LED
  • 1x vertical Qwiic connector
  • Notepad for notes
  • Board dimensions: 25.4 x 25.4 mm
