NANO V3.0 16MHz Micro USB - ATmega328P - CH340 - Clone - Arduino

A universal mini module compatible with the original Arduino, equipped with an ATmega328P microcontroller and a Micro USB connector (version with pins for self-soldering). Can be used in many microprocessor projects. The system is compatible with the Arduino project.

• A faithfully reproduced maple ensures operation and reliability.
• NANO has a CH340 programmer, which requires an additional driver, which can be found below.
• Thanks to the convenient USB Type-C connector, it is easy to connect this module to a computer and program it. Thanks to its small size, it is suitable for smaller projects.
• The Atmega328 microcontroller is used in Arduino.
• Nano has a voltage stabilizer so we can power the module with a voltage higher than 5V.

• The Nano version, like the Pro, is based on the popular Uno module
• It has an Atmega328 microcontroller.
• The board has a Micro USB connector with the CH340 chip
• The board contains an ATmega328 processor with
  • 32kB Flash memory
  • 1kB SRAM memory
  • 1kB EEPROM memory
  • It is clocked with a 16 MHz clock signal.
• The board has pins - outputs/inputs
  • 14 digital pins - can be used as input or output. The pins operate in the TTL5V standard. The efficiency of each of them reaches 40mA, and they also have built-in pull-up resistors. Some of the pins have additional functions (UART, INT, PWM, SPI, LED).
    • including 6 PWM channels, e.g. for controlling servos/motors, e.g. SG-90
  • 8 analog inputs, each of which allows measurement with 10 bit resolution. Some of the pins have additional functions (I²C, AREF, Reset).
• Arduino Nano can be powered
  • via Micro USB cable
  • unstabilized voltage of 7-12V supplied to pin 30 or from a stabilized 5V voltage source.
  • The system automatically selects the power source with the highest voltage.
  • The CH340 chip, which provides communication with the computer, can only be powered by USB.
• The system has a communication system with the computer through:
  • UART interface - connected to pins 0 (RX) and 1 (TX).
  • USB - CH340 chip
  • Additionally, I²C (TWI) and SPI interfaces are supported
• Works with voltages of 5 V.
• Switch for manual reset
• LED diodes to control the operation of the system
• The connectors arranged on the board allow you to plug the board directly into the breadboard.
• This version has soldered connector pins
• Programming is done using the Arduino IDE, a free software that is extremely beginner-friendly. - IDE program - http://www.arduino.cc/en/Main/Software
• The micro-controller on the board has a pre-installed bootloader that allows you to upload software without using additional hardware.
  • As standard, the BLINK LED 13 program and bootloader are loaded into the module - description http://majsterkowo.pl/od-go-zaczac-zabawe-z-arduino/
• Additionally, it is possible to program the processor via ICSP.

• Supply voltage: 5V
• Microcontroller: ATmega328 - 16 MHz
• Ports - I/O pins: 14
• Number of analog inputs: 8
• Number of PWM outputs: 6
• Serial interfaces: UART, SPI, I2C
• External interrupts
• Protection against excessive current flow
• The module is made of 0.8 mm thick laminate
• Weight less than 5 g.
• pin spacing 2.54mm (can be mounted in breadboards)
• Dimensions: 45x19 mm
• 32kB flash memory
• 1kB EEPROM
• 1kB SRAM
• 2 8-bit timers/counters
• 1 timer/counter 16 bit
• connector: Micro USB

• Power supply
  • If the supply voltage is higher than 5 V, it should be connected to the RAW pin, which is connected to the stabilizer.
  • VCC is connected directly to the microcontroller pins, connecting a voltage higher than 5V may permanently damage the system.
• Inputs/outputs
  • Arduino Pro has 14 digital input/output (I/O) pins.
  • Each pin allows a maximum current of 40 mA, which allows direct connection of LEDs with resistors and control of other integrated circuits.
  • In addition to standard I/O, some pins also have special functions.
• programming
  • Creating and uploading software is possible in a free environment provided by the manufacturer.
  • You can use the PL2303 Programmer for programming via UART

• Arduino Pro Mini Home Page - http://www.arduino.cc/en/Main/arduinoBoardNano
• IDE program - http://www.arduino.cc/en/Main/Software
• Errors in the pinouts of the Nano V3.0 board - http://microcontrollers.cba.pl/?p=6
• USB chip driver - http://www.driverscape.com/download/usb-serial-ch341

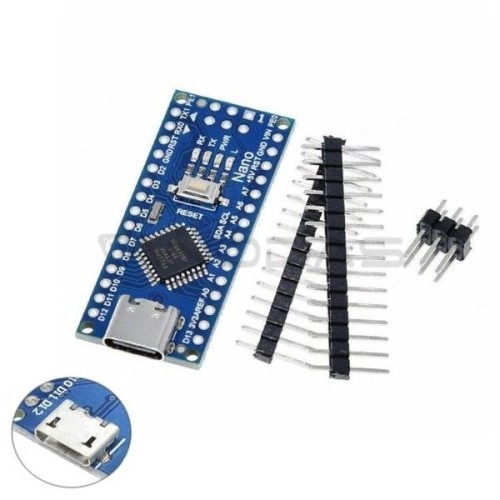

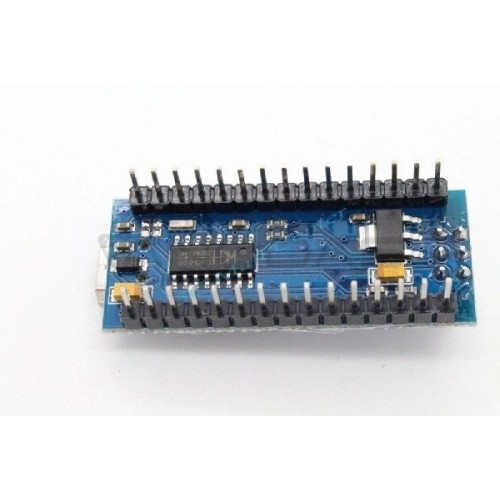

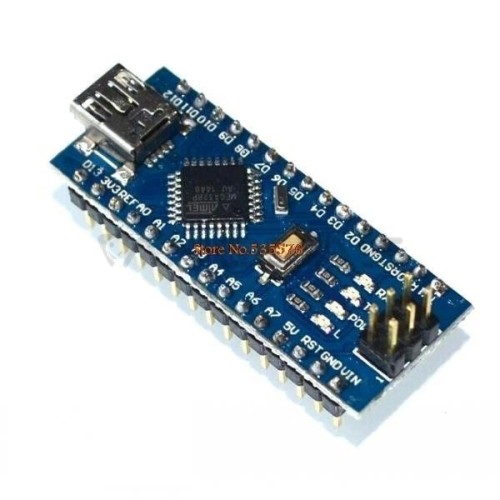

Illustrative photo.
