MyCobot camera with case for myCobot M5 arm robot and myCobot Pi - Elephant Robotics

Brand: Elephant Robotics
Product Code: AN-21490
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
178.10€
Ex Tax: 147.19€

Qty

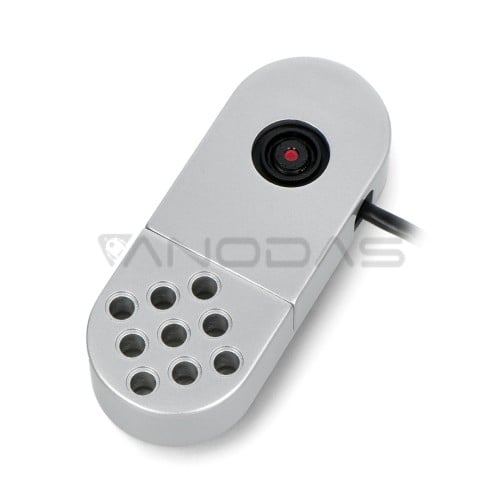

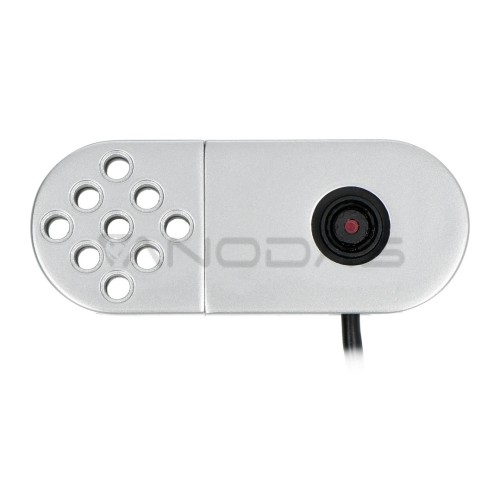

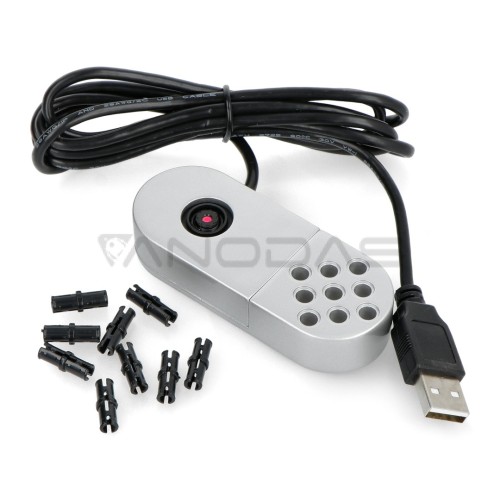

MyCobot camera with housing is an extension for robots from Elephant Robotics, the camera works with: ER myCobot 280 M5, ER myCobot 280 Pi, ER MyCobot 280 Jetson Nano and ER MyCobot 280 For Arduino. Thanks to the device, you can create larger, more advanced and more interesting projects. Wide range of applications, the webcam is suitable for face recognition, smart screen, intelligent express delivery, vending machines, code scanner, access control, medical equipment. The housing made of photosensitive resin provides good protection for the webcam against scratches or other mechanical damage.

Main features:
  • A super small camera that communicates via microUSB
  • It supports MJPE and YUV format
  • Thanks to the plug-and-play function, the device installs in a few minutes on the robot arm and you can start working
  • The compact design and small size make it comfortable to use
  • Light and easy to carry
Specification:
  • Maximum pixels: 1 million 1280x720
  • Supported formats: YUV, MJPEG
  • Pixel Size: 3.4 µm x 3.4 µm
  • Maximum refresh rate: 1280x720px
  • USB protocol: USB 2.0 HS / FS
  • Supported Resolution:
    • 1280x720px
    • 640x480px
    • 320x240px
  • Power supply: DC 5 V / 90 mA
  • The focal length of the lens: 1.7 mm
  • Viewing angle: 60 °
  • Supported Operating Systems:
    • Win 7/8/10
    • Linux
    • MOTHER
  • Camera dimensions: 18 x 18 x 20 mm
  • Case material: photosensitive resin
  • Housing dimensions: 80 x 40 x 20 mm
  • Case weight: 60 g
