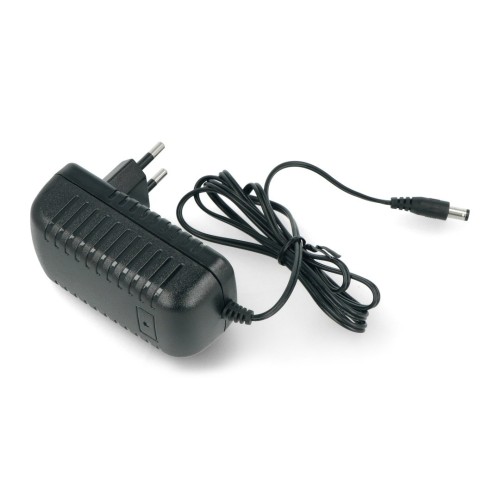

MW Power EB2424 24V/1A switching power supply - DC 5.5/2.1mm plug

Brand: MW POWER
Product Code: AN-19138
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-22
13.70€
Ex Tax: 11.32€

Qty

EB2424 Switch Mode Power Supply delivers 24 V DC to devices with a 5.5 mm / 2.1 mm DC socket. The current capacity of the module is 1 A and the nominal power is 24 W. The plug-in power supply unit produced by MW Power is cooled by free air circulation. It has class II protection and overload, overvoltage and short-circuits protection. The unloaded power consumption is less than 0.3 W. The cable length is 150 cm.

Specification:

  • Model: EB2424
  • Power supply design: Socket-mounted
  • Plug type: DC 5.5 / 2.1 mm
  • Supply voltage: from 100 V to 240 V AC
  • Mains voltage frequency range: 50 Hz to 60 Hz
  • Mains current consumption: 0,4 A
  • Output voltage: 24 V
  • Output current: 1 A
  • Rated power: 24 W
  • Cable length: 150 cm
  • Dimensions: 77.5 x 45.5 x 31 mm
