Multimeter DT9208A

Brand: Xtreme
Product Code: 50-209
Availability: Vilnius Store In Stock
Kaunas Store In Stock
Central Warehouse Out of Stock
11.90€
Ex Tax: 9.83€

Qty

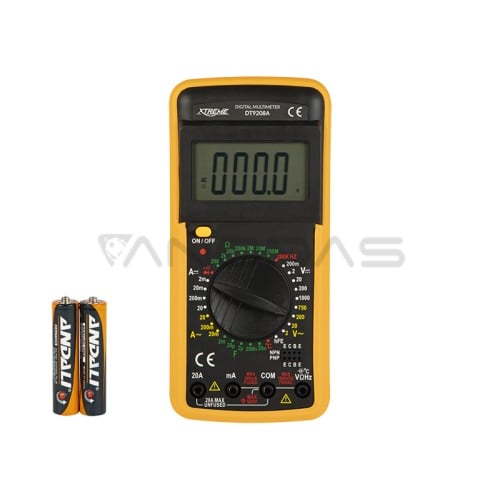

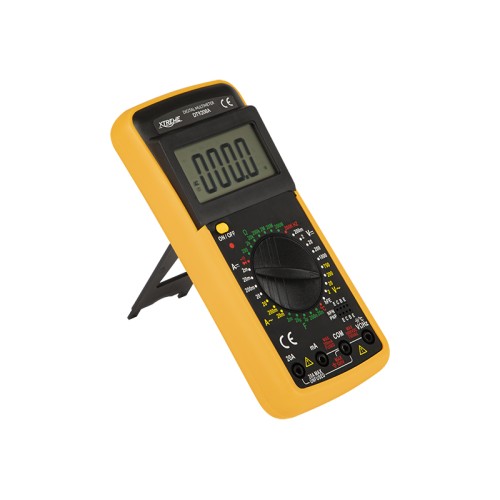

The XTREME multimeter is a versatile tool for the workshop or school, but it is also perfect for home and professional tasks. It features a highly readable LCD screen that can be adjusted and angled, as well as a protective and removable rubber cover and a built-in support at the back to facilitate the reading of results during measurements. The set also includes the necessary cables.

Specifications:

  • Constant voltage: 200mV/2V/20V/200V/1000V ±(0.8%+5)
  • AC voltage: 200mV/2V/20V/200V/750V ±(1.0%+5)
  • Continuous current: 20 µA/200 µA/2000 µA/20 mA/200 mA/2 A/20 A ± (2.0 %+2)
  • AC current: 20 µA/200 µA/2 mA/20 mA/200 mA/2 A/20 A ± (2.0 %+3)
  • Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ ±(1.0%+4)
  • Capacitance: 2nF/20nF/200nF/2uF/20uF/200uF +/-(4%+5)
  • Temperature: -40°C~150°C +/-(1.0%+4), 150°C~1370°C +/-(1.5%+15)
  • Frequency: 2kHz/200kHz +/-(3%+5)
  • Transistor hFe test: YES
  • Acoustic Continuity Tester: YES
  • Diode Test: YES
  • LOGIC: YES
  • Screen: LCD, adjustable
  • Power supply: 9V battery
  • Sampling rate: 2 times per second
  • Measurement method: A/D double integral converter
  • Out of range alarms: only the number "1" on the display.
  • Operating temperature: 0-40 °C
  • Storage temperature: -10-50 °C
  • Low battery indicator: battery icon on screen
  • Product dimensions: 190x90x33mm
  • Product weight: 227g
  • Included: multimeter, batteries, necessary cables

Features:

  • Adjustable LCD screen
  • Rotary switch to select specific function, ranges and
  • turning the counter on and off

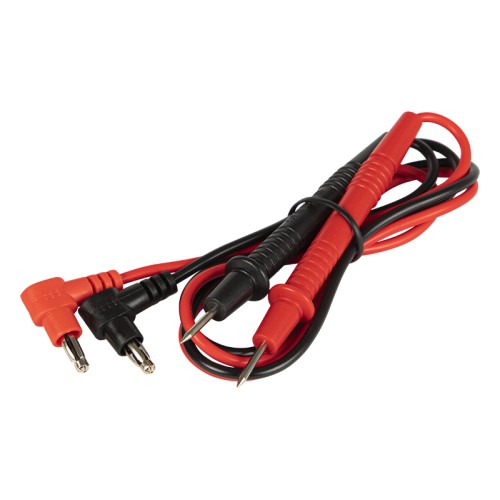

  • Test leads are included
  • Powered by a 9V DC battery
  • Low battery indicator
  • Out of range alarm

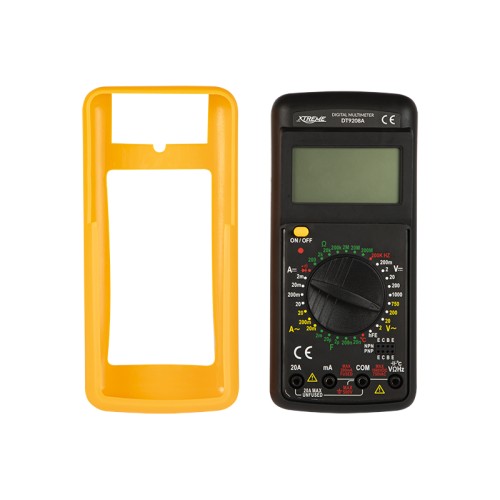

  • Rubber, removable cover
