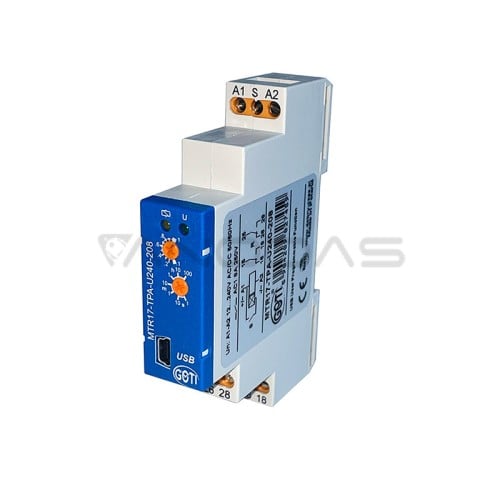

MTR17-TPA-U240-208 time relay

A programmable time relay is an auxiliary element supporting automation in industrial control systems. It has a universal supply voltage of 12…240V AC/DC and two 2NO/NC 8A contacts. TimProg software is used to program the relay. The most important feature of this product is the ability for the user to create their own time sequences (functions) using up to eight independent time blocks. This makes it possible to implement operating patterns not available in typical time relays. The program is loaded into the relay via the USB connector using a PC application. The relay status and time measurement information are indicated by two LEDs.

Specification:

• Number and type of contacts: 2NO/NC
• Rated switching current In: AC1 – 8A/250V AC ; DC1 – 8A/24V DC
• Maximum total contact load: 12A
• Maximum switching power in AC1 category: 2,000VA
• Maximum contact voltage: 400V AC
• Contact resistance: ≤ 100mΩ
• Maximum switching frequency for rated load: 600 cycles/h
• Rated supply voltage Un: 12…240V AC/DC
• Operating range of supply voltages: 0.8…1.1Un (9.6…264V)
• Rated power consumption: AC: ≤ 2.5VA ; DC: ≤ 2W
• AC power frequency range: 47…63Hz
• Minimum control voltage S: 0.7Un
• Minimum S pulse duration: AC power supply: ≥ 90ms ; DC power supply: ≥ 45ms
• S contact loadable: yes
• High energy surge resistance: 1,000V
• Rated insulation voltage: 250V AC
• Rated surge voltage: 4,000V (1.2/50μs)
• Overvoltage category: III
• Insulation contamination degree: 2
• Flammability class: plate: V0, housing: HB
• Input-output test voltage: 4,000V AC
• Test voltage contact break: 1,000V AC
• Track-to-track test voltage: 2,000V AC
• Electrical life in category AC1 at 50% In load: ≥ 150,000
• Mechanical durability: ≥ 30,000,000
• Relay status indicator: LED green, yellow
• Ambient temperature: -20°C…. +55°C
• Maximum relative humidity: 85%
• Housing protection level: IP20
• Impact resistance: 15g
• Vibration resistance: 0.35mm (10…55Hz)
• Connections: Screw terminals max. 2.5 mm²
• Mounting: DIN 35 rail
• Timing function: freely programmable
• Time ranges (each time block): 1s, 10s, 1m, 10m, 1h, 10h, 100h
• Time setting adjustment: Smooth 0.1…1.0 x range
• Repeatability: 0.5%
• Recovery time: ≤ 100ms
• Dimensions axbxh: 90 x 17.5 x 66mm
• Weight: 61g
