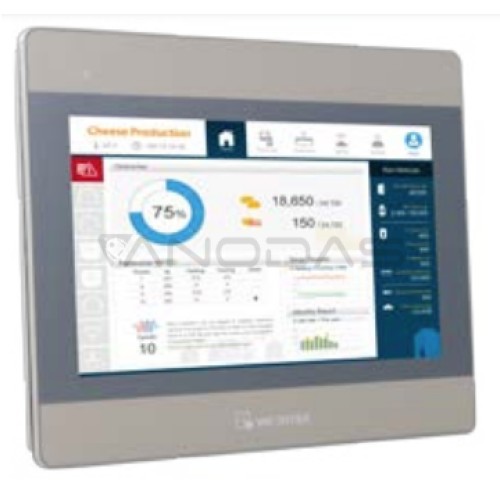

MT8102iEU panel

Display:

• Screen: 10.1" TFT
• Resolution: 800 x 480
• Brightness (cd/m 2 ): 300
• Contrast: 500:1
• Backlight life: > 30,000 hours
• Colors: 262

Touch matrix type:

• 4-wire, resistive

Memory:

• Flash: 128 MB
• RAM: 128 MB

Processor:

• 32 bits RISC Cortex-A8 600MHz

I/O ports:

• USB Host: USB 2.0 x1
• Ethernet: 10/100 Base-T x 1
• COM port: COM1: RS-232/RS-485 2W/4W, COM3: RS-485 2W
• RS-485 Dual Isolation

RTC:

• built-in

Power supply:

• Supply voltage: 24±20%VDC
• Current consumption: maximum 600mA@24VDC, Class2; 500VAC (1 min.)

Specification

• Housing: plastic
• Dimensions: 271 x 213 x 40 mm
• Weight: approx. 1.3 kg

Working conditions:

• Protection rating: UL Type 4X (indoor use only) / NEMA4 / IP65 Compliant Front Panel
• Temp. storage: from -20˚C to +60˚C
• Temp. operation: from 0˚C to +50˚C
• Relative humidity: 10% to 90% (non-condensing)

Certificates:

• CE certificate
• cULus Listed

Software:

• EasyBuilder Pro V5.00.01 (or later)
