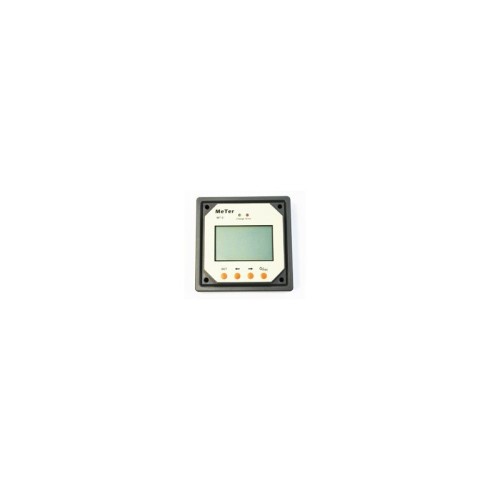

MT1 Control Panel - for EPIPDB-COM series controllers

MT1 monitor - digital meter with LCD display. Shows system information, detected errors and current operating parameters (panel voltage, battery voltage, charging current and more). The panel is designed to work with EPIPDB - COM series controllers and supports both the latest communication protocol and advanced voltage management technologies in the supported controllers.

Main features:

• Automatic identification and display of the type, model and relevant operating parameters of the supported controllers.
• Real-time display of operating data and operating status of the connected controller and their presentation in digital form, graphic and text symbols on a large and easy-to-read LCD screen.
• Direct, convenient and quick operation with six functions and navigation buttons.
• Both data and power are transmitted over a single cable - no external power is required.
• Real-time monitoring of data, remote switching of controllers load and data browsing as well as modification of controller parameters, retrieves parameters controlling the operation of receivers.
• Real-time display of information about system failures and their signaling with an acoustic alarm.
• Longer communication range thanks to the RS485 interface.


Specification:

• Model: MT1
• Rated voltage: 12 V
• Own consumption (active backlight): < 20 mA (1st stage illumination), < 23 mA (2nd stage illumination)
• Own consumption (without backlight): < 17 mA
• Working temperature: -40 °C ~ 60 °C
• LCD working temperature: -10 °C ~ 40 °C
• Humidity: 0-100%
• Communication cable: RJ45 (8PIN) 10 meters
• Dimensions: 95 x 95 x 24 mm
• Mounting holes: 4
