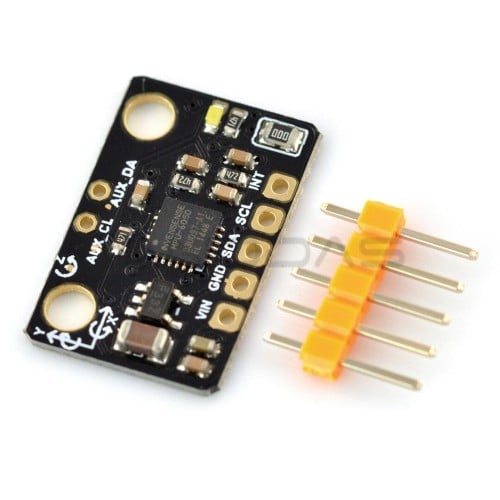

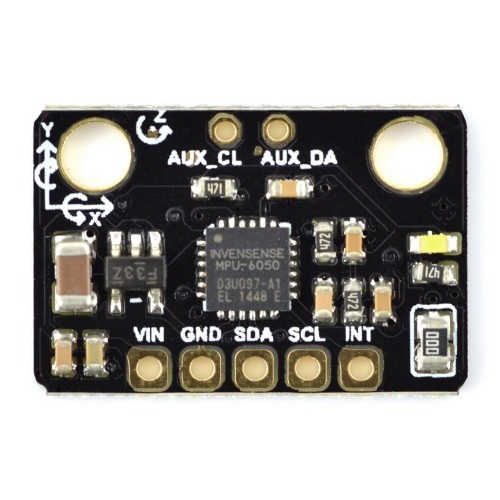

MPU-6050 3-axis accelerometer and I2C gyroscope - DFRobot module

Brand: Dfrobot
Product Code: AN-03888
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
23.00€
Ex Tax: 19.01€

Qty

Sensor for measuring acceleration and angular velocity in three axes. It is a combination of 3-axis accelerometer and gyroscope. It is characterized by simple operation, it communicates via the I2C bus and operates with voltages from 3 V to 5 V.


Specification:

  • Supply voltage: from 3.0 V to 5.0 V
  • The operating voltage of the leads: from 3.0 V to 5.0 V
  • Current consumption: approx. 5mA
  • Three axes: X, Y, Z
  • Communication interface: I2C (TWI) - 400 kHz
  • Resolution: 16-bits for each axis
  • Measuring ranges (configurable):
    • Accelerometer: ±2 g, ±4 g, ±8 g, ±16 g
    • Gyroscope: ±250 °/s, ±500 °/sec, ±1000 °/s, ±2000 °/sec
  • Set has goldpin connectors for self-soldering
  • Two mounting holes with diameter of 3 mm

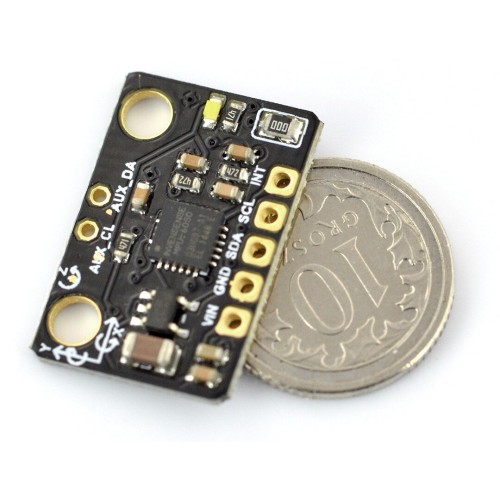

  • Board sizes: 21 x 14 mm
  • Weight: 0.9 g
Documents:
Website of the manufacturer
Guide
Diagram
