MPPT tester, 5-800W, 0-35A, 12-60VDC, manual/auto mode, UNI-T
Product Code: UT673PV
Availability: 3-5 business days
Planuojama gavimo data po užsakymo: 2025-02-13
Ex Tax: 52.81€

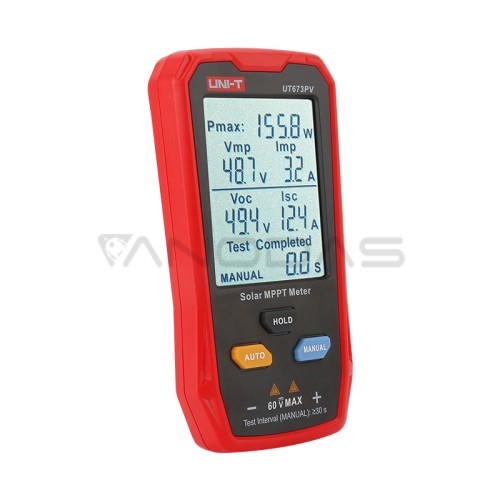

UT673PV - Solar MPPT Meter
The UT673PV solar MPPT meter can effectively detect any changes in solar panels by checking:
- Maximum power
- Maximum power voltage
- Peak power current
- Open circuit voltage
- Short-circuit current
This device has a spacious display and automatic measurement functions, so all measurement results are conveniently displayed at once. The portable device is easy to carry with you, so it greatly increases the efficiency of operation and maintenance for photovoltaic manufacturers, installers and end users.
Please note that the maximum voltage is 60V, it is not suitable for measuring thin film solar cells with high output voltage.
This UT673PV solar MPPT meter with a large screen and automatic measurement capabilities conveniently displays all measurement results at once. Its portable design can be easily carried, which greatly improves the operational and maintenance efficiency of photovoltaic manufacturers, installers and end users.
Features:
Certifications (UT673PV series only): CE, cETLus, RoHS
- Maximum power test (Pmax) 5 ~ 800W
- Peak power voltage (Vmp) 12 ~ 60V
- Maximum power current (Imp) 0 ~ 35A
- Open circuit voltage (Voc) 12 ~ 60V
- Short circuit current (Isc) 0 ~ 35A
- Large screen and multiple results display
- No batteries required, powered by solar panels
- MC4 test lead installed
- Portable and convenient
Specifications :
Specification | ||
Maximum power measurement | 5 ~ 800W | ±(1.0% + 10) |
Maximum supply current (direct current) | 0 ~ 35A | ±(1.5% 5) + |
Maximum supply voltage (direct current) | 12 ~ 60V | ±(1.5% 5) + |
Open circuit current (direct current) | 12 ~ 60V | ±(1.5% 5) + |
Short-circuit current (direct current) | 0 ~ 35A | ±(1.5% 5) + |
General characteristics | ||
Screen | Large LCD display (52*66mm) | |
Reverse polarity | √ | |
Surge protection | √ | |
Overcurrent protection | √ | |
Overtemperature protection | √ | |
Overpower protection | √ | |
Manual/automatic MPPT test | √ | |
Data retention | √ | |
Power source | No battery required, powered by solar panel | |
Category | CAT 0 60V |
