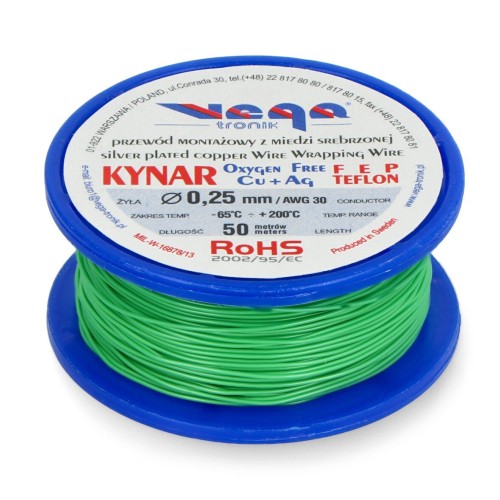

Mounting cable Kynar silver plated copper - 0.25mm/AWG 30 - green - 50m

Brand: Vega tronik
Product Code: AN-16261
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-18
60.20€
Ex Tax: 49.75€

Qty

Kynar type cable for installation, connections used in various types of specialized equipment. Made of high-quality anaerobic silver-plated copper covered with green Teflon / FEP insulation. The conductor has a diameter of 0.25 mm and AWG 30. The operating temperature is from -65 °C to 200 °C at 250 V. The cable is made according to MIL-W-16878/13, it is 50 m long.

Specification:
  • Cable type: Kynar
  • Colour: green
  • Material: Anaerobic silver-plated copper
  • Execution: in compliance with MIL-W-16878/13 RoHS standard
  • The diameter of the vein: 0.25 mm / AWG 30
  • Conductor cross-section: 0.05 mm2
  • Construction of the conductor: 1x 0.254 mm
  • Conductor sheath: Teflon coating based on FEP
  • Operating temperature: -65 °C to 200 °C
  • Maximum diameter of the wire: 0.28 mm
  • Rated voltage: 250 V
  • Manufactured in Sweden
  • Cable length: 50 m
