Motor capacitor 25uF 450V 40x77mm with connectors

Product Code: 2776M
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-05-13
4.00€
Ex Tax: 3.31€

Qty

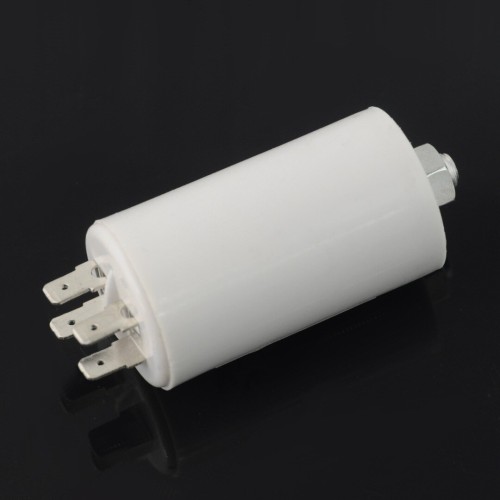

Capacitor for induction motors of AC 50/60 Hz which can be used in fans, blowers, drives, compressors, refrigerators, mowers, etc. It is characterized by high capacitive stability, high insulation resistance and body made of flame retardant plastics. The capacity of 25 µf / 450 VAC. Connectors: 6.3 mm. Size: Ø40 x 77 mm.

Specifications:

  • Capacitance: 25 uF ±5%
  • Maximum voltage: 450 VAC
  • Working temperature: from -40 °C to 70 °C
  • Leads: connectors of 6.3 mm
  • Mounting: M8 screw
  • Case dimensions: Ø40 x 77 mm
