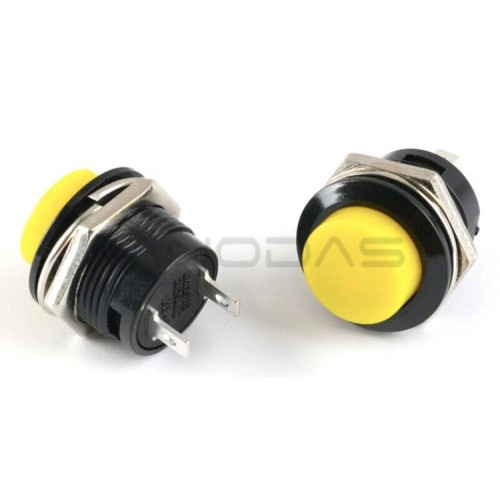

Momentary button R13-507 - yellow - 250V-3A - 16mm - monostable - round

Product Code: ABC-19019
Availability: 5-8 business days
Planuojama gavimo data po užsakymo: 2025-05-13
1.00€
Ex Tax: 0.83€

Qty

The momentary button - monostable R13-507 is a simple, small button mounted to a housing with a hole diameter of 16 mm. The button - RESET - is a control element that generates an impulse for the installation, as a result of which, for example, the lighting turns on or off. Both turning on and off the lighting requires pressing a key.

Technical data
  • button screwed to the housing
  • type: momentary - monostable
  • terminals for soldering wires
  • number of pins: 2 PIN
  • current/voltage: 3A/250V AC

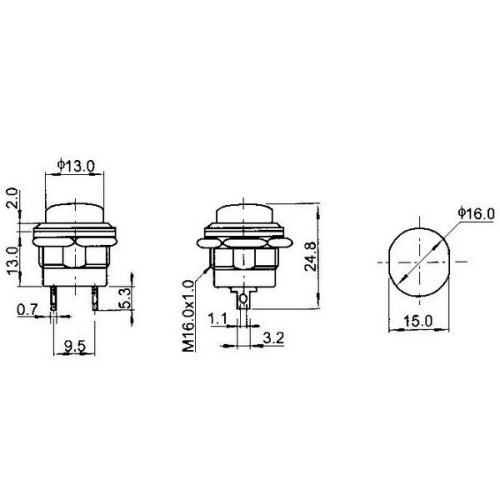

  • button diameter: 16mm
  • hole diameter: 16mm
  • key color: yellow
Included
  • - 1 piece
  • Washer - 1 pc
  • Nut - 1 pc
