Mokomasis robotikos Rinkinys - QBOT V2 orange/white

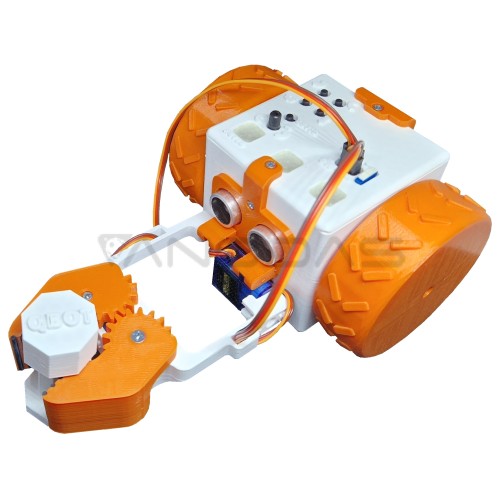

QBOT is an educational robotics-electronics kit designed to show what robots are, what they are made of and what they are for. The kit teaches the basics of robotics: assembly, control and programming. The robot can be controlled with the buttons on top - a set of commands is collected and then the robot executes what is indicated. The QBOT robot is controlled by an Arduino microcontroller, so it can be wired and programmed by a computer. The set includes instructions that describe the assembly and operation of the robot. The manual also contains 60 tasks of different levels.

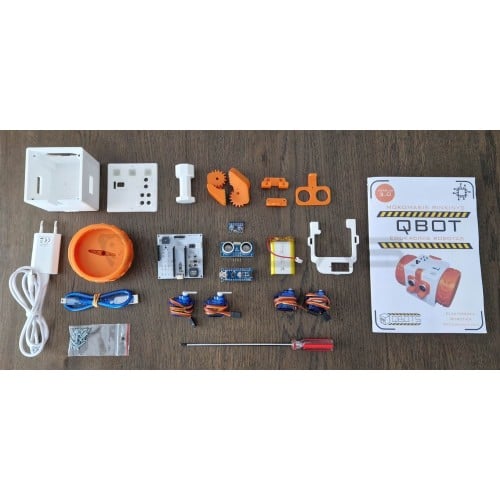

The set includes electronic parts:

• x1 QBOTS wiring diagram
• x1 Arduino Nano microcontroller
• x1 ultrasonic sensor HY-SRF05
• x1 inertial sensor MPU6050
• x2 servo drives MG90 (180 degrees)
• x2 servo drives EF90D (360 degrees)
• x1 lithium polymer battery 3.7 V
• x1 charging adapter 1 A with cable

Mechanical details:

• x1 main body part
• x1 upper body
• x1 grapple arm
• x2 chuck pliers
• x1 trophy
• x1 front bracket
• x1 rear bracket
• x1 chuck holder
• x2 wheels
• x1 Phillips screwdriver
• x20 screws M2x5 mm
• x10 screws M2x10 mm
• x1 screw M3x16mm
• x4 special servo screws

QBOTS Control Program:

• - Driving straight ~20 cm
• - Travel back ~20 cm
• - Turn left 45 degrees
• - Turn right 45 degrees
• - Grapple command
• - Start/Stop button

Additional features:

• - Adjusting the robot's straight travel
• - Obstacle detection
• - Battery discharge level measurement and indication (during operation)
• - Battery charging indicator lights (while charging)

Instruction:

• - Assembling the robot
• - Robot control
• - x13 figure driving tasks (without programming)
• - x10 obstacle avoidance tasks (without programming)
• - x8 simple gripper tasks (no programming)
• - x7 complex gripper tasks (no programming)
• - Robot reprogramming and configuration
• - x5 movement tasks (programming)
• - x5 orientation task (programming)
• - x6 gripper tasks (programming)
• - x5 other tasks (programming)
• - x1 secret task X (programming) - a chance to win a PRIZE!

Video:

Presentation video:

Unboxing the robot:

Full assembly:

Control:
