Module with USB type A socket

Product Code: AN-04873
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-02
1.30€
Ex Tax: 1.07€

Qty

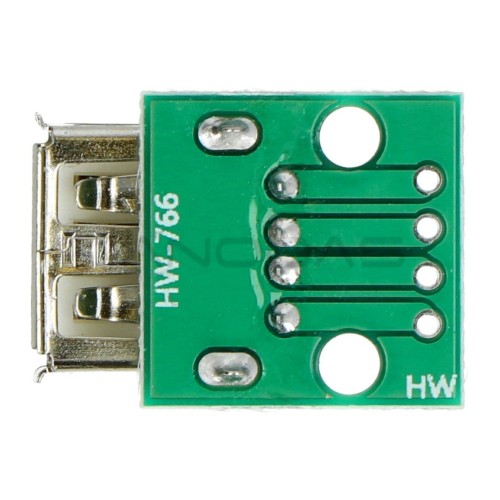

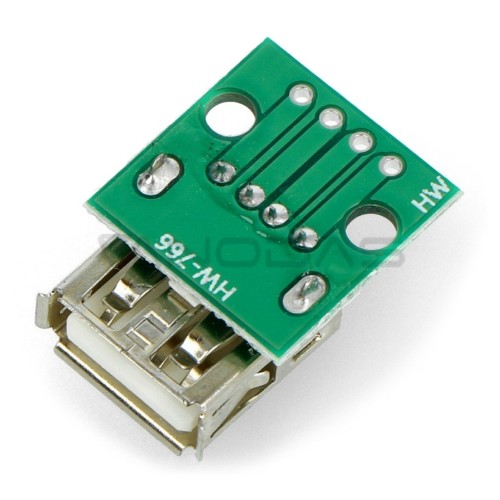

Module with socket allows you to connect a USB plug to any system. Output raster: 2.54 mm suitable for standard breadboards and connection cables. Output raster is a standard goldpin 2.54 mm (not included, must be purchased separately). Module dimensions: 24 x 17 mm. the PCB has two mounting holes with a diameter of 3 mm.

Specification:

  • Connector USB type A

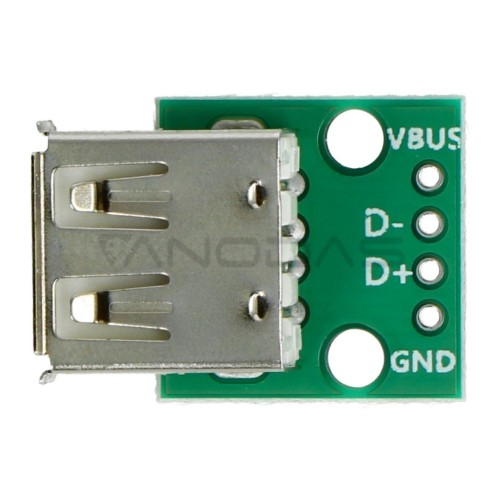

  • USB signals: GND, VBUS, D+, D-
  • Two mounting holes diameter 3 mm
  • Output raster: 2.54 mm - standard goldpin (connectors not included, can be purchased separately)
  • The dimensions of the board with the slot: 24 x 17 mm
