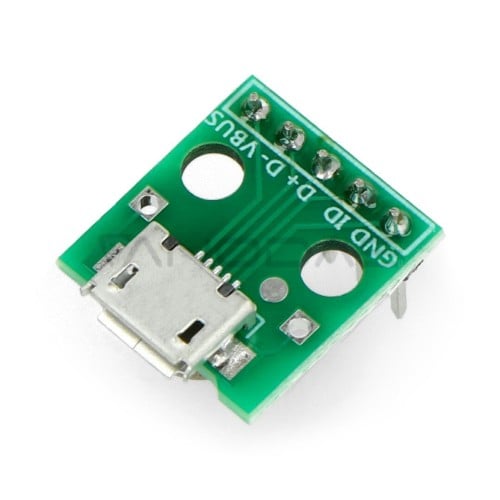

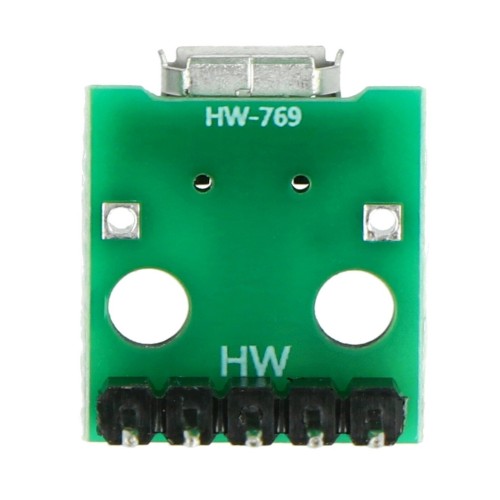

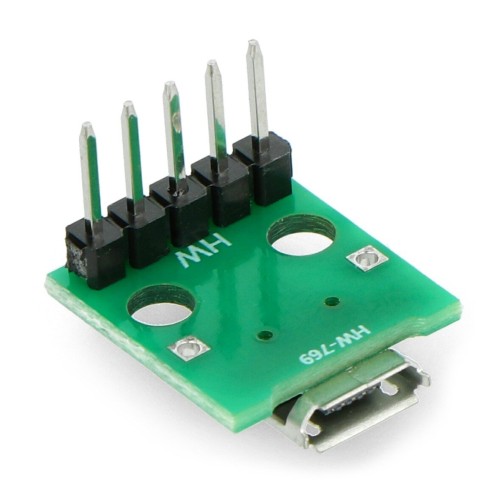

Module with microUSB socket - soldered connectors

Brand: OEM
Product Code: AN-16535
Availability: 4-6 business days
Planned delivery date after ordering: 2024-11-22
1.90€
Ex Tax: 1.57€

Qty

The module with a socket allows you to connect a microUSB plug to any system. 2.54mm gaps, is compatible with standard contact boards and connecting cables. The module is ready for use and already has soldered connectors. There are two mounting holes with a diameter of 3mm on the plate.


Specification:

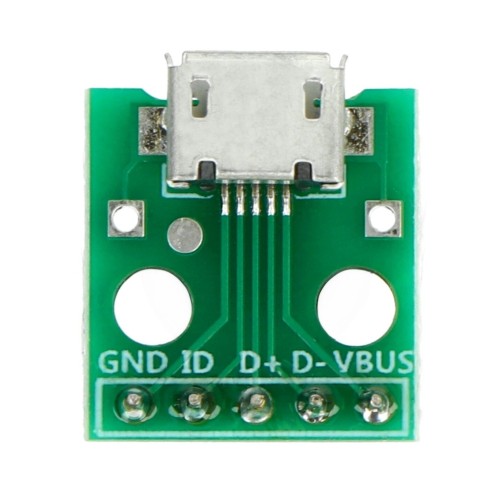

  • Output USB signals: GND, VBUS, D +, D-, IO
  • Two mounting holes with a diameter of 3mm
  • Pin gaps: 2.54mm - standard goldpin
  • Board dimensions with a slot: 15x13mm
