Module with LED RGB diode - Iduino SE010

Brand: Iduino
Product Code: AN-14294
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
1.80€
Ex Tax: 1.49€

Qty

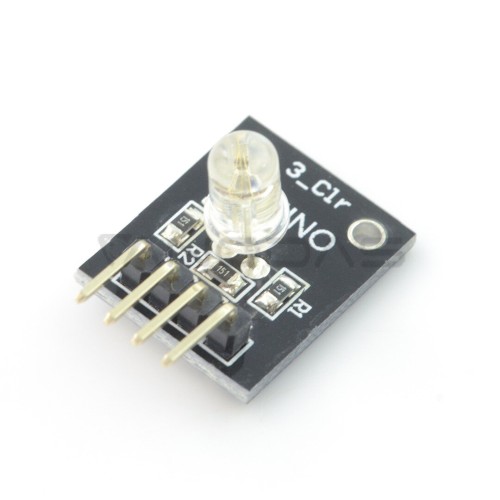

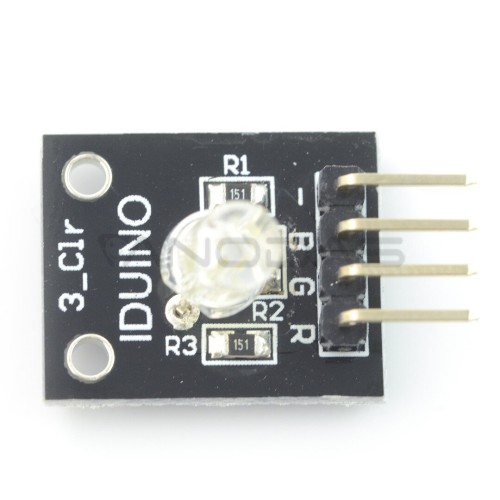

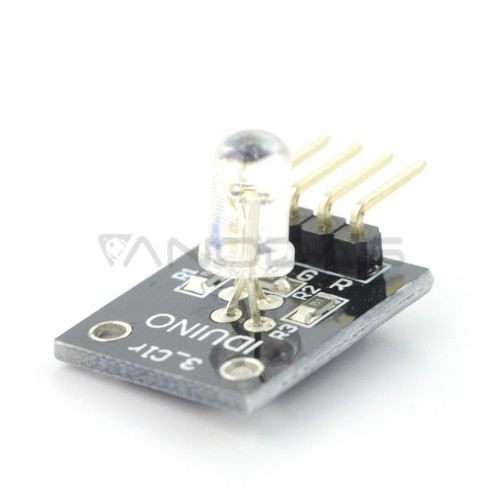

Iduino module with LED diode, emitting light in the colors RGB. It has a 4-pin connector with adjustable input PWM. It can be controlled via the Arduino.

Specification:
  • Voltage red: 1.8 V to 2.1 V
  • Voltage green: 3.0 V to 3.2 V
  • Voltage blue: from 3.0 V to 3.2 V
  • Length of the light beam for the red color: from 620 nm to 625 nm
  • The length of the beam of light for green: from 520 nm to 525 nm
  • The length of the light beam for blue from 465 nm to 470 nm
  • Brightness red: 600 mcd 800 MCD at 20 mA
  • Brightness green: from mcd 800 to 1000 MCD at 20 mA
  • Brightness blue: 1500 mcd to the 2000 MCD at 20 mA
