Module with JST SH-Style Connector 6-Pin Male, Top-Entry, Pololu 4770

Brand: Pololu
Product Code: AN-19485
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
2.70€
Ex Tax: 2.23€

Qty

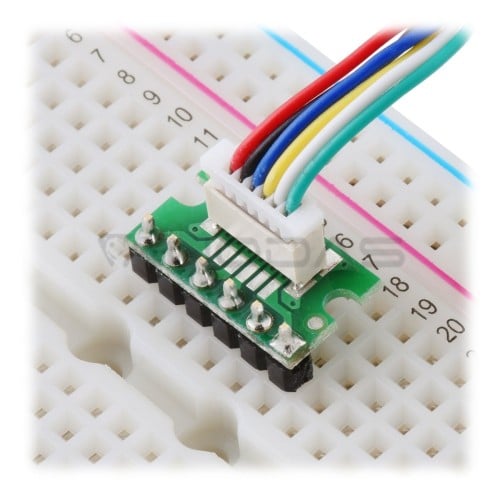

PCB with JST SH socket made by Pololu company. The socket module was created for faster prototyping with the JST SH 6-pin plug and wire. It is equipped with a socket with six male pins of 1 mm pitch, which are connected to pins of 2.54 mm pitch. After soldering the goldpin strip it is possible to plug the module directly into the contact board, which greatly facilitates prototyping.

Specification:
  • Number of pins: 6
  • Pin pattern
    • JST SH connector: 1 mm
    • module: 2.54 mm

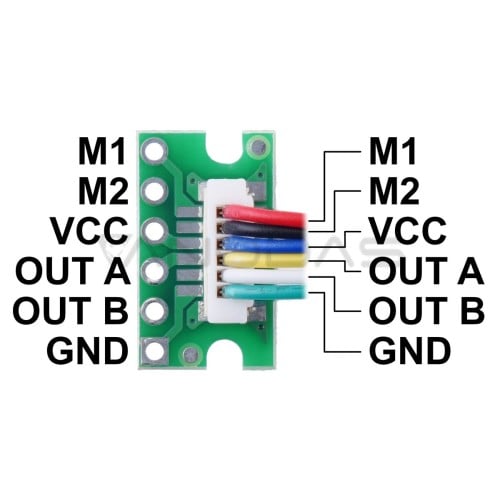

  • Wire description:
    • Red: motor power supply (voltage)
    • Black: motor power supply (ground)
    • Blue: encoder power supply (voltage)
    • Yellow: encoder output A
    • White: encoder B output
    • Green: encoder power supply (ground)

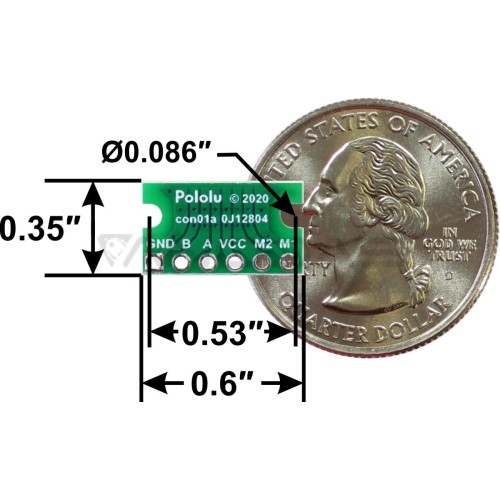

  • Dimensions: 15.2 x 8.9 x 1.02 mm
  • Weight: 0.5 g
