Module Pixel x2 with addressed diodes LED RGB WS2812B 5050 - 28mm

Product Code: AN-08787
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
6.70€
Ex Tax: 5.54€

Qty

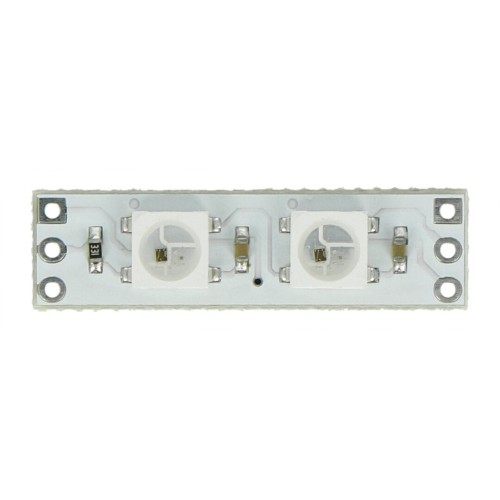

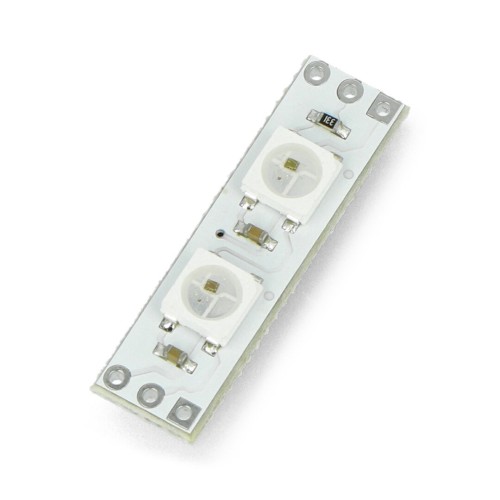

The strip consists of 2 individually addressed RGB LEDs with an integrated controller. The module needs just a single pin of the microcontroller, e.g. an Arduino. The LEDs are arranged at equal distances on the strip with a length of 28 mm. Each one consumes 20 mA, which in this case gives a total value of approx. 40 mA. The strip can be powered with voltages from 3.3 V to 5 V.

Specification:
  • Supply voltage: from 3.3 V to 5 V
  • Current consumption: approx. 20 mA (per diode)
  • Applicable light: LED RGB WS2812B
  • Number of LEDs: 2
  • Strap dimensions: 28 x 8 mm
