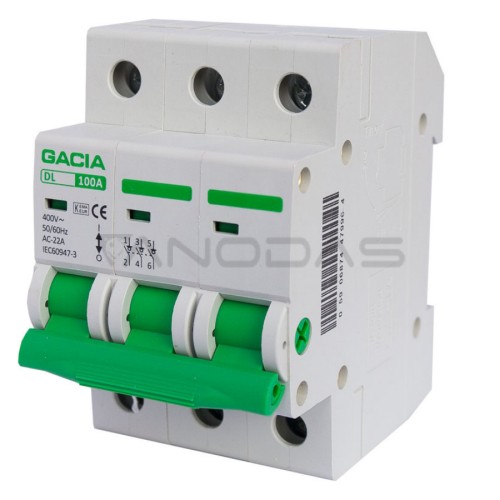

Modular disconnector, 100A, 3-pole

DL switch-disconnector - an electrical connector (disconnector) that simultaneously performs two functions:
• conducting current under rated conditions, during overcurrent (including short circuit, for an appropriately defined time) and disconnecting the circuit under rated and fault conditions,
• insulation, i.e. meeting the insulating properties ensuring safe operation of the staff.

DL series isolating switches are designed as main switches for electrical circuits operating at 230/400 V AC 50/60 Hz and with a rated current of 40A to 125 A, as well as for connecting electrical circuits under load. A device that meets the above requirements according to the IEC/EN 60947-3 standard has the above-mentioned standard marked on its housing and is marked with an appropriate symbol.

The product may only be installed by authorized persons. Before installation, disconnect the power supply. Safe and easy mounting on TH35 rail using plastic clips. To improve safety of use, it is equipped with a clear activation indicator.

Electrical Features:

• Rated current: 100A
• rated short-circuit current: 12 le 1s
• rated impulse resistance (1.2/50) Uimp: 6000
• pollution level: 2
• rated voltage Ue: 400V
• rated insulation Ui: 500V
• current frequency Hz: 50/60 Hz
• Electric life: 1500
• number of fields: 3

Mechanical features:

• mechanical life: 8500
• working position indicator: yes
• protection level: IP 20
• storage temperature: -30 / +70°C
• operating temperature: -30 / +50°C
