Miniature linear actuator 12V - SPJ - 6'-15cm
Product Code: MX-SI-OWNIK-SPJ-6
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-19
Ex Tax: 48.43€
Dimensions
- Lower body: 100x60x60 [mm]
- Total length when folded: 350 [mm]
- Arm extension: 150 [mm]
- Arm diameter: 25 [mm]
Electric actuator - a linear actuator with an excellent price-quality ratio. It is characterized by very small dimensions, good parameters and good workmanship. The product is often used in agricultural machines and devices that must meet appropriate standards. It has internal safety limit switches. The feed direction is changed after the polarity is reversed - it is driven by a DC motor (direct current motor).
The small SPJ Mini electric actuator is easy to install and use. It has internal safety limit switches. Perfect and simple way to control via buttons or relays. Extremely easy adjustment of the end contacts (extension) means that this actuator can be successfully used in their applications even by very beginner users. After stopping operation, the lead screw gear will not allow the actuator to be moved in any way, which provides protection against burglary. The device is additionally equipped with a pulser with a resolution of 48 pulses/inch, which means that with appropriate control (via a pulse counting system), information about the current extension is available. The actuator is available in three extension variants: 15cm, 20cm and 25cm. If you have any questions about the extension value, please use our help department, where we will answer your questions by phone or e-mail.
Main advantages:
- Very small dimensions,
- Good workmanship,
- The built-in pulser allows the electronic systems to precisely determine the position of the actuator,
- Stable operation of the actuator,
- Convenient articulated mountings,
- Rated voltage 12V DC,
- Resistance to weather conditions,
- Fully adjustable extension (can be set from a few mm to the nominal value of extension),
- Versatility of applications, unprecedented universality.
Actuators can be used to automatically control:
- Automation elements,
- Linear machine elements,
- Windows, doors and gates,
- Lifts: motorcycles, engines, etc.
- In agricultural machines and vehicles,
- In smart buildings.
Control options:
- By radio remotely using a remote control,
- From buttons on wires,
- Automatically based on time or sensors.

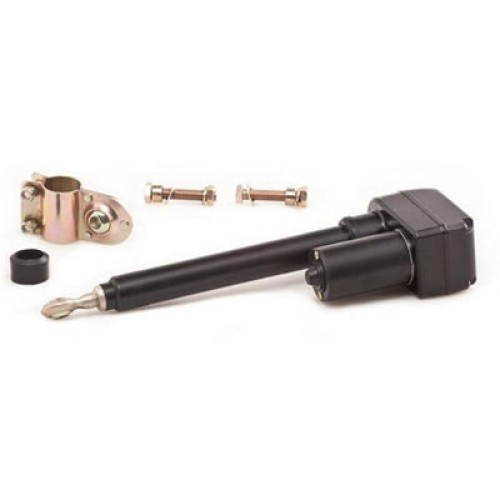

The set includes:
- Small electric actuator Super Power Jack MINI,
- Articulated mounting on the arm - clamp,
- Mounting screws,
- Rubber seal at the end of the arm,
- Written warranty and instructions in Polish.
Length L [mm]: 350
Series: SPJ MINI
Operating temperature [°C]: -50°C...+45°C
Protection class: IP 65
Speed: 5.4 mm/s
Force: 1000 N (100 kg)
Range L: 150 mm
Supply voltage: 12 VDC
Maximum current: 1.5A
Limit switches: Not adjustable
Feedback: None
