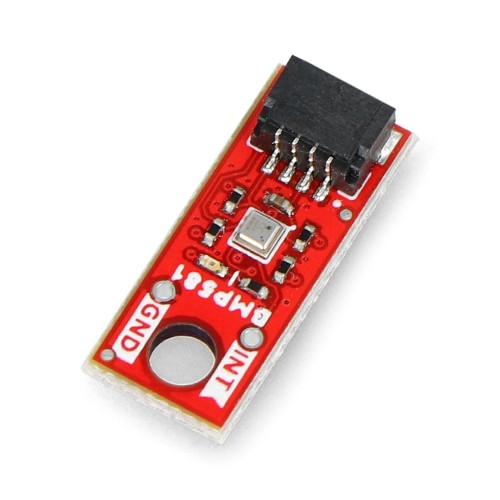

Miniature air pressure sensor - barometer - 30-125kPa - BMP581 - Qwiic - SparkFun SEN-20171

Brand: Sparkfun
Product Code: AN-21819
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
54.90€
Ex Tax: 45.37€

Qty

A miniature sensor equipped with the BMP581 system by Bosch Sensortec enables the measurement of atmospheric pressure in the range from 30 hPa to 125 kPa with an accuracy of ± 0.5 hPa and temperature in the range from -40 °C to 85 °C. The sensor has a very high measurement resolution, reaching up to 1/64 Pa. It features a configurable oversampling setting, a FIFO buffer to hold up to 32 pressure samples, programmable low-pass filtering, and up to 6 bytes of user-programmable non-volatile memory.

Specification:
  • Type: barometer, air pressure and temperature sensor, barometric sensor
  • Built-in chip: BMP581
  • Pressure measurement range: from 30 hPa to 125 kPa
    • Accuracy: ± 0.5 hPa
    • Data resolution: 1/64 Pa
  • Temperature measurement range: -40 °C to 85 °C
  • Supply voltage range: 1.65 V to 3.6 V
  • Power consumption:
    • 260 µA - maximum consumption during measurements
    • 1.3 µA / 1 Hz - consumption in low consumption mode
    • 0.55 µA - sleep mode / idle mode
  • Communication interface: I2C
  • I2C interface address
    • 0x47 - default
    • 0x46 - alternate
  • I2C data transfer speed: 1 MHz
  • Output data baud rate:
    • 0.125 Hz to 240 Hz (normal mode)
    • 622 Hz (continuous mode, 1x oversampling)
  • 6 bytes of non-volatile memory
  • Built-in FIFO buffer for storing up to 32 measurements
  • Built-in low-pass filter
  • Conclusions: 1x Qwiic connector
  • Tile sizes: 19.05 x 7.62 mm
